Detail Drawings

The following details are utilized in the specification and design of Neogard deck coating, waterproofing, wall coating, flooring and roof coating systems in both new and retrofit applications. They are provided to show a generally recommended procedure for dealing with the condition shown. They will not and can not provide a specific solution for every condition likely to be encountered in field application. Where field conditions differ, the use of applicable portions of the details shown or their adaptation by an experienced and conscientious applicator should result in a quality project.

Click on the images to view and/or download the details.

Deck Coating & Waterproofing

Crack Detail

crack detail

Double T Crack Control

double t crack

Drain Detail

drain detail

Typical Deck Flashing

typical desk flashing

Vertical Projection

verical projection

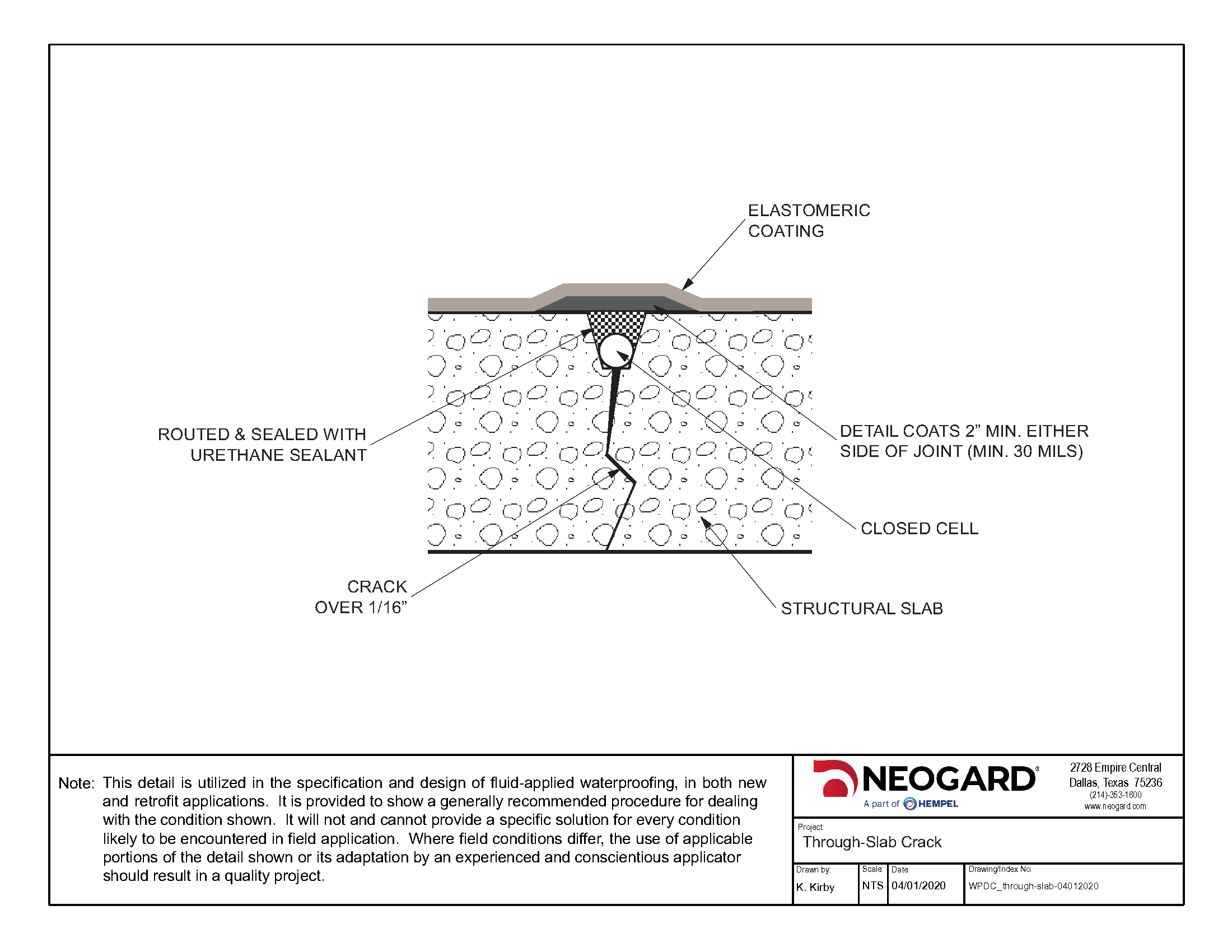

Thru Slab Crack

thru slab crack

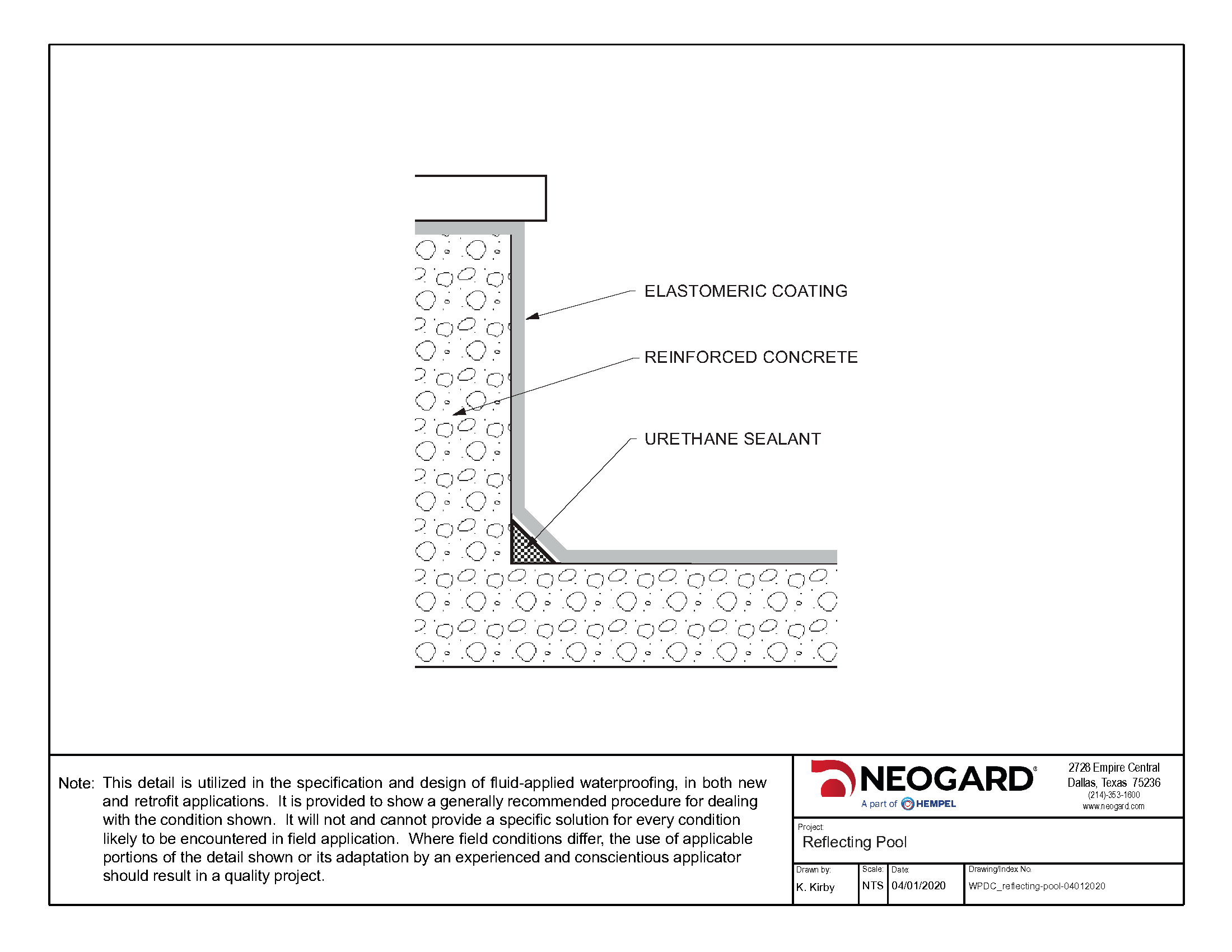

Reflecting Pool

relecting pool

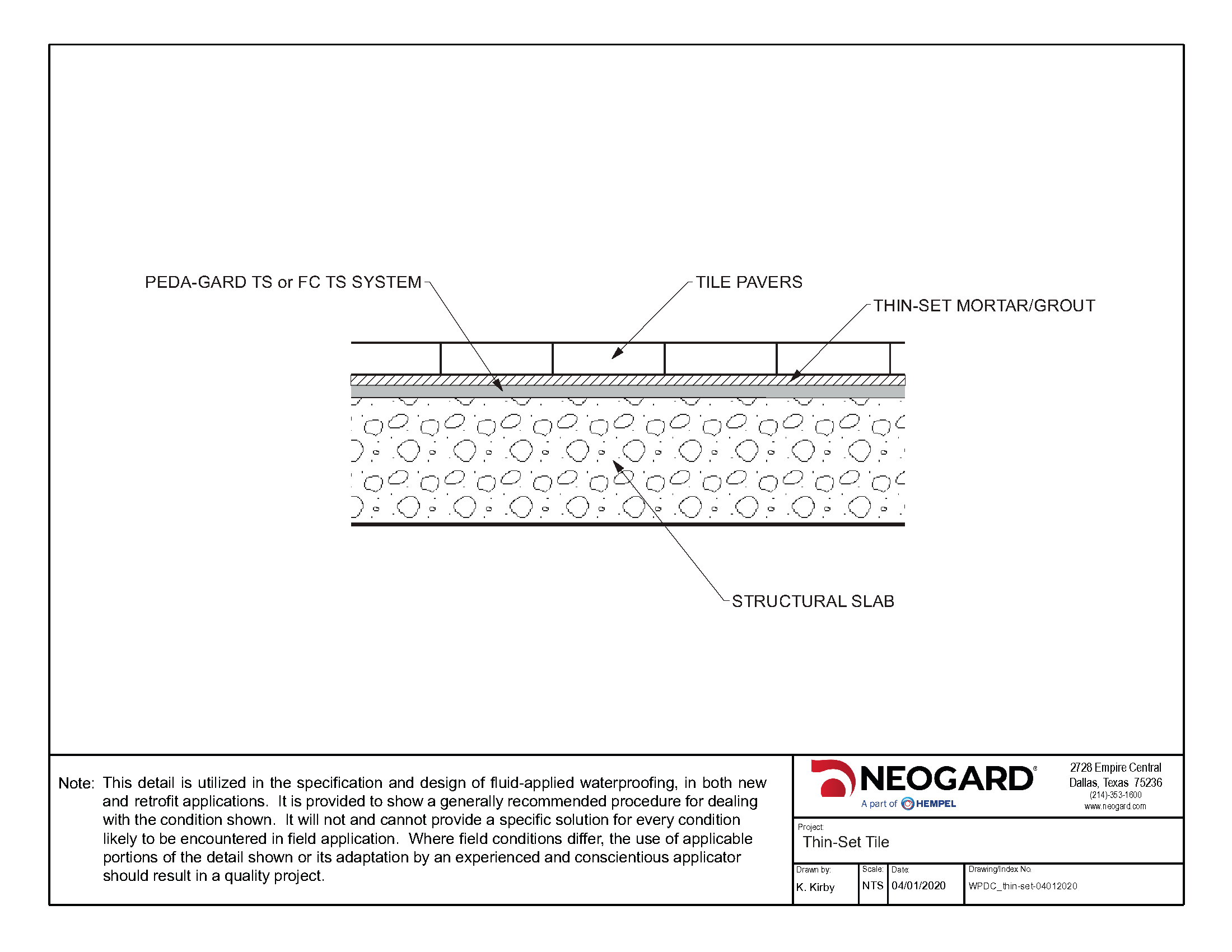

Thin-Set Tile

thin set tile

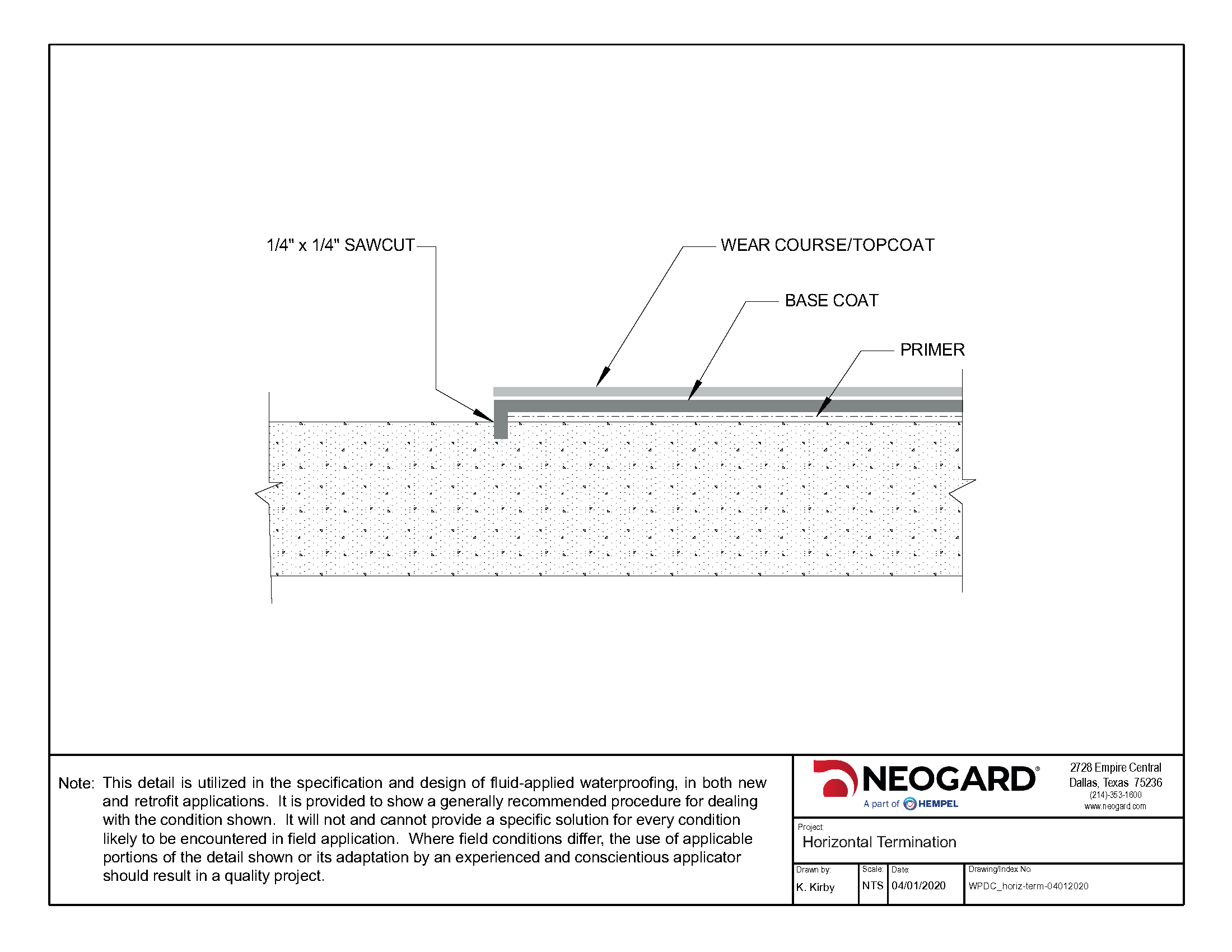

Horizontal Termination

horizontal termination

Wall Coating

Crack Repair (< 1/16")

small crack

Crack Repair (> 1/16")

crack large

Concrete Columns, Version 1

concrete columns one

Concrete Columns, Version 2

concrete columns two

Parapet Waterproofing

parapet waterproofing



Flooring

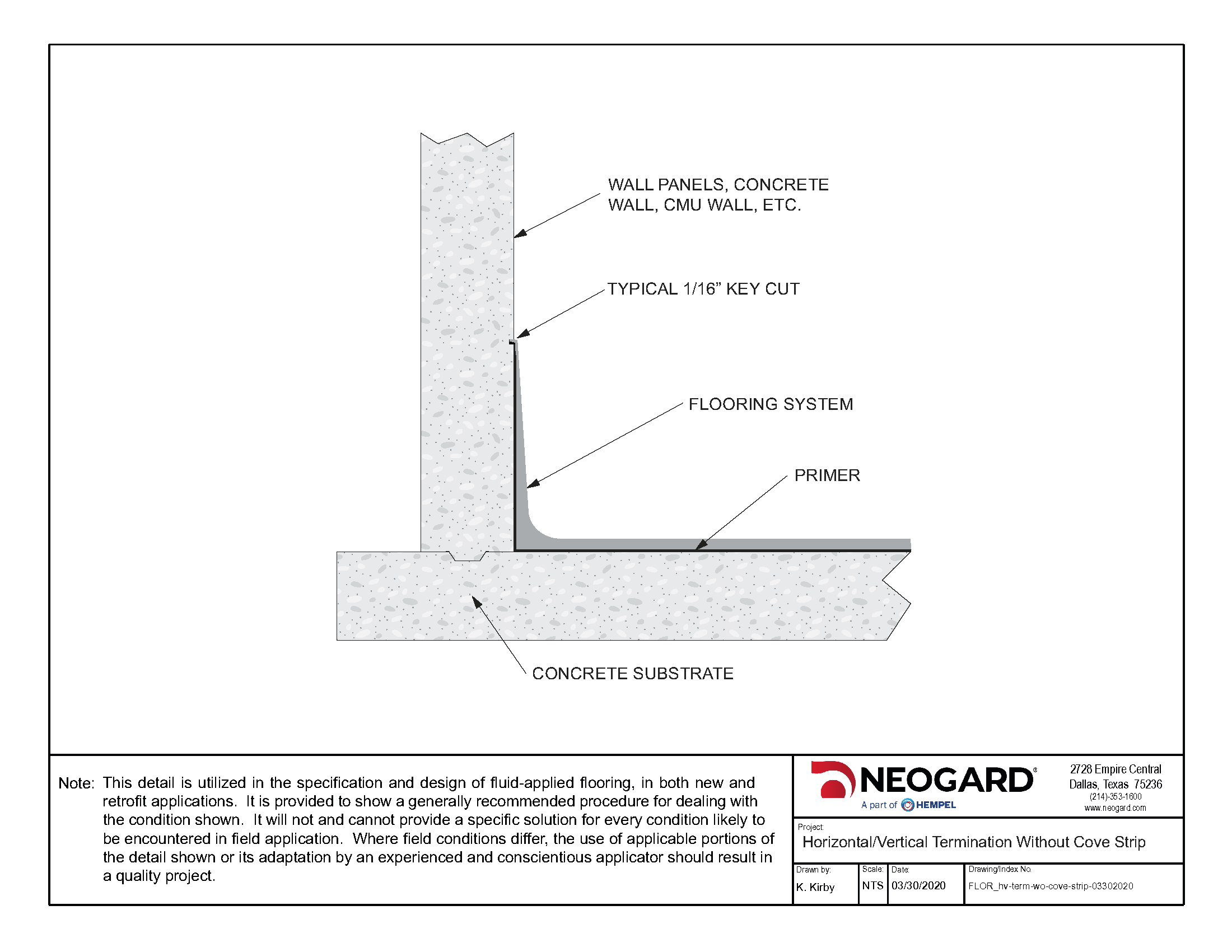

Vertical Termination w/o Cove Strip

verical termination

Standard Trowel Cove Base

standard trowel cove

Cant Cove Termination

cant cove termination

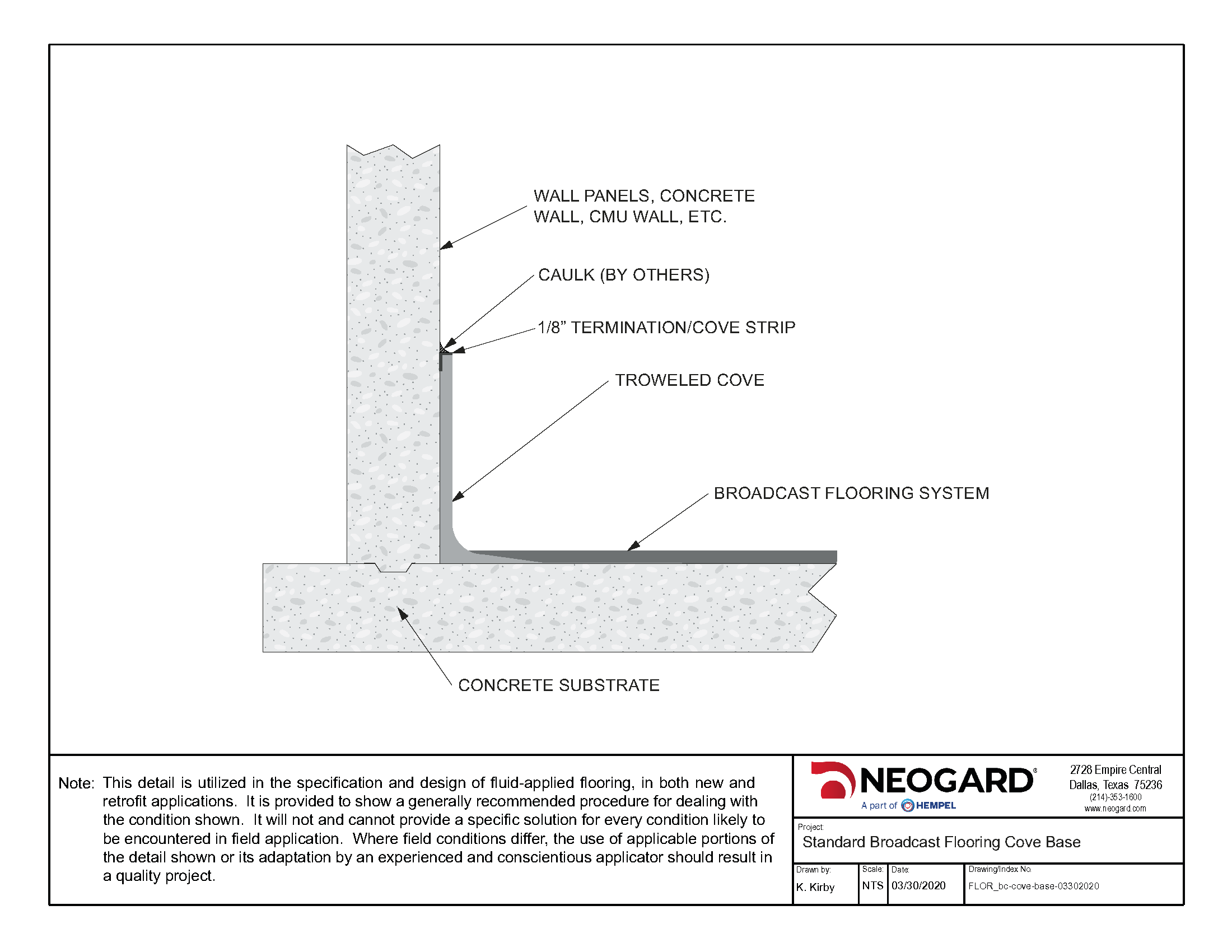

Broadcast Floor Cove Base

broadcast floor cove

Standard Cove Base

standard cove base

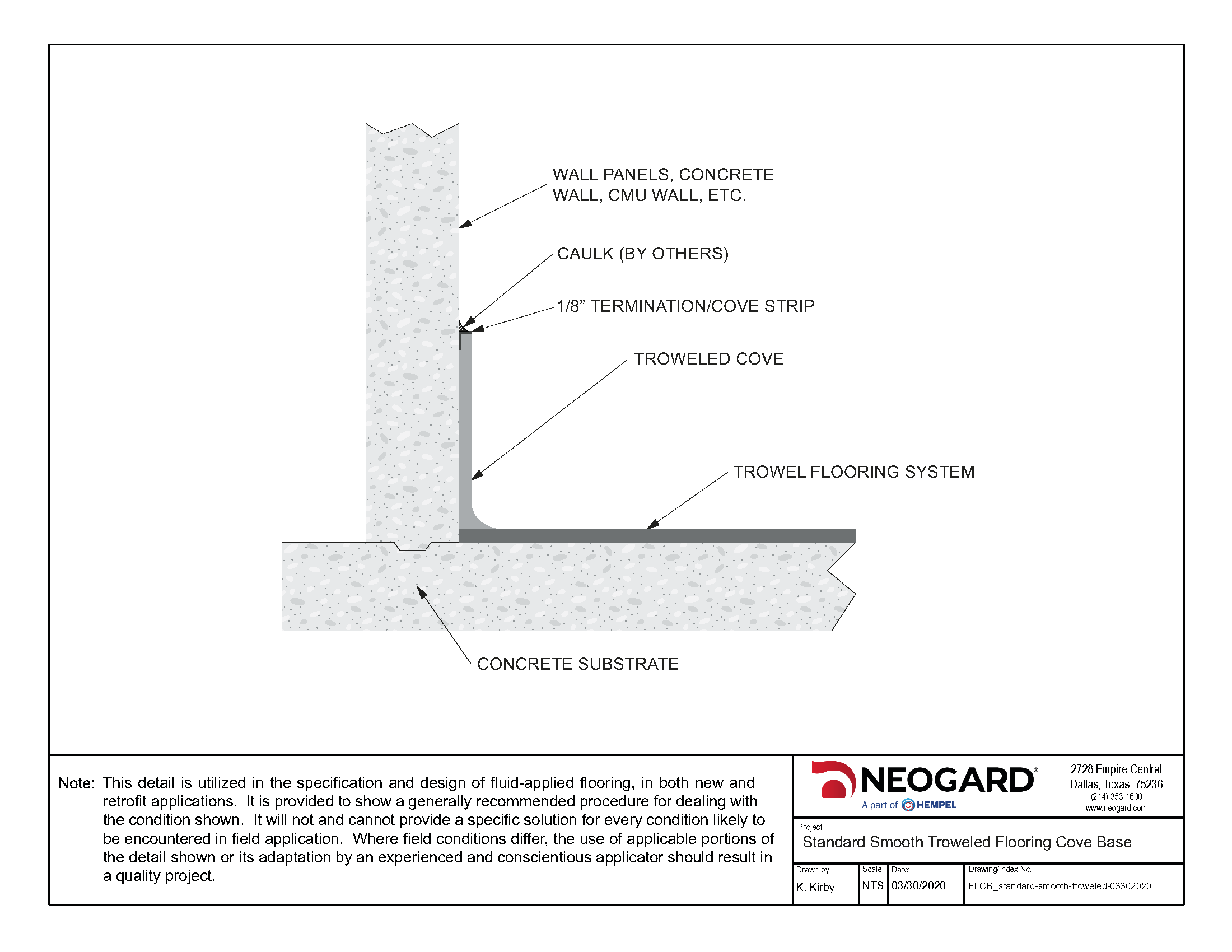

Smooth Trowel Cove Base

smooth trowel cove

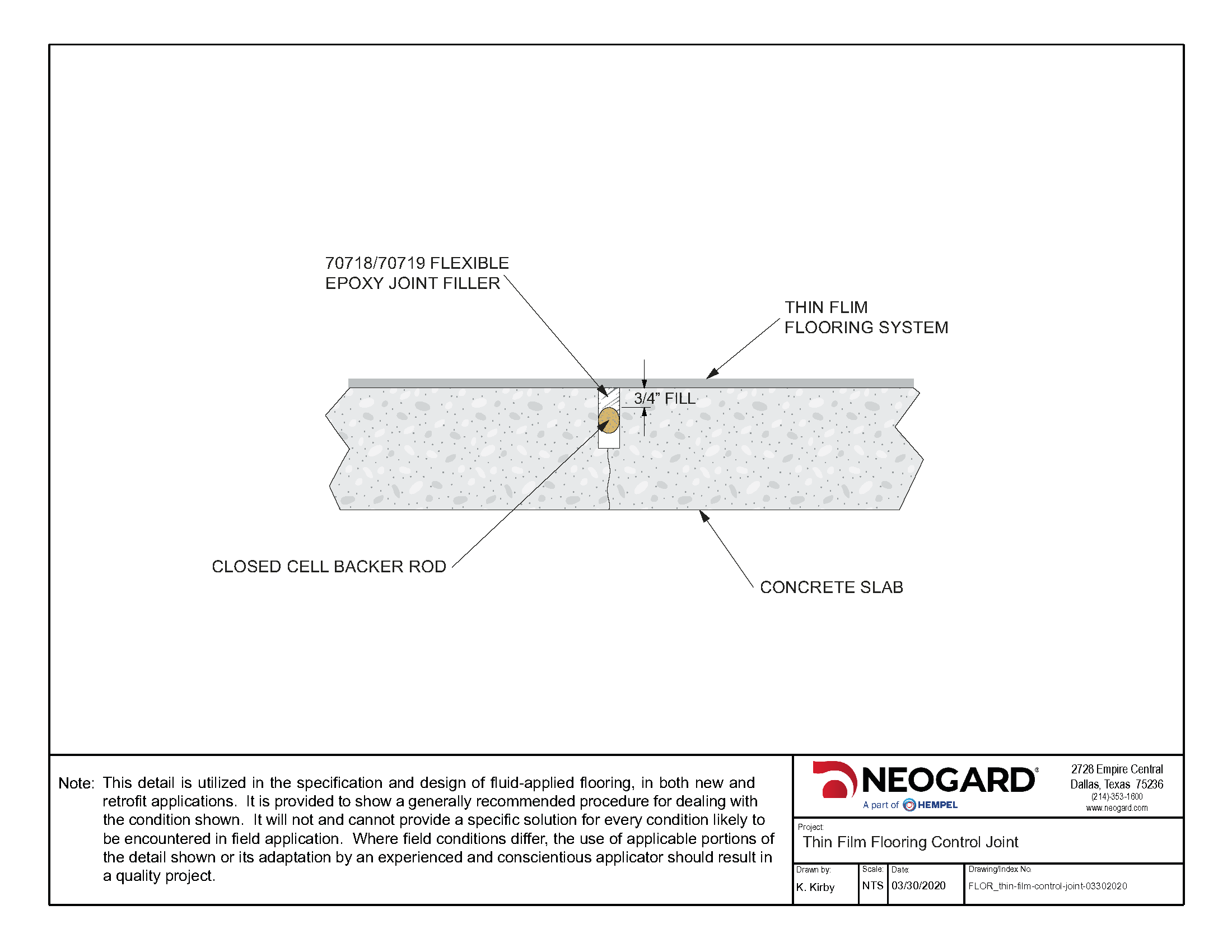

Thin Film Flooring Control Joint

thin film flooring

Expansion/Isolation Joint

expansion isolation joint

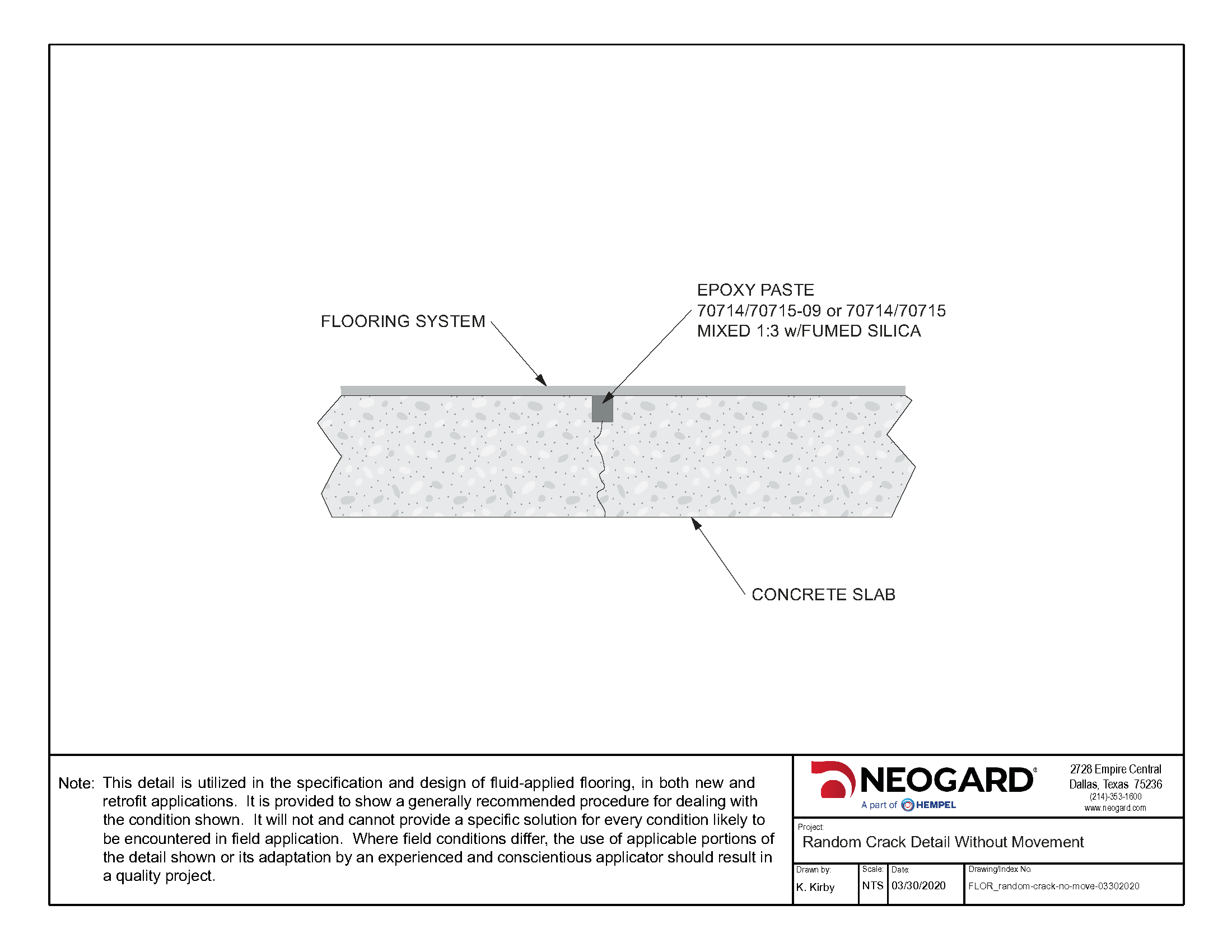

Random Crack w/o Movement

random crack

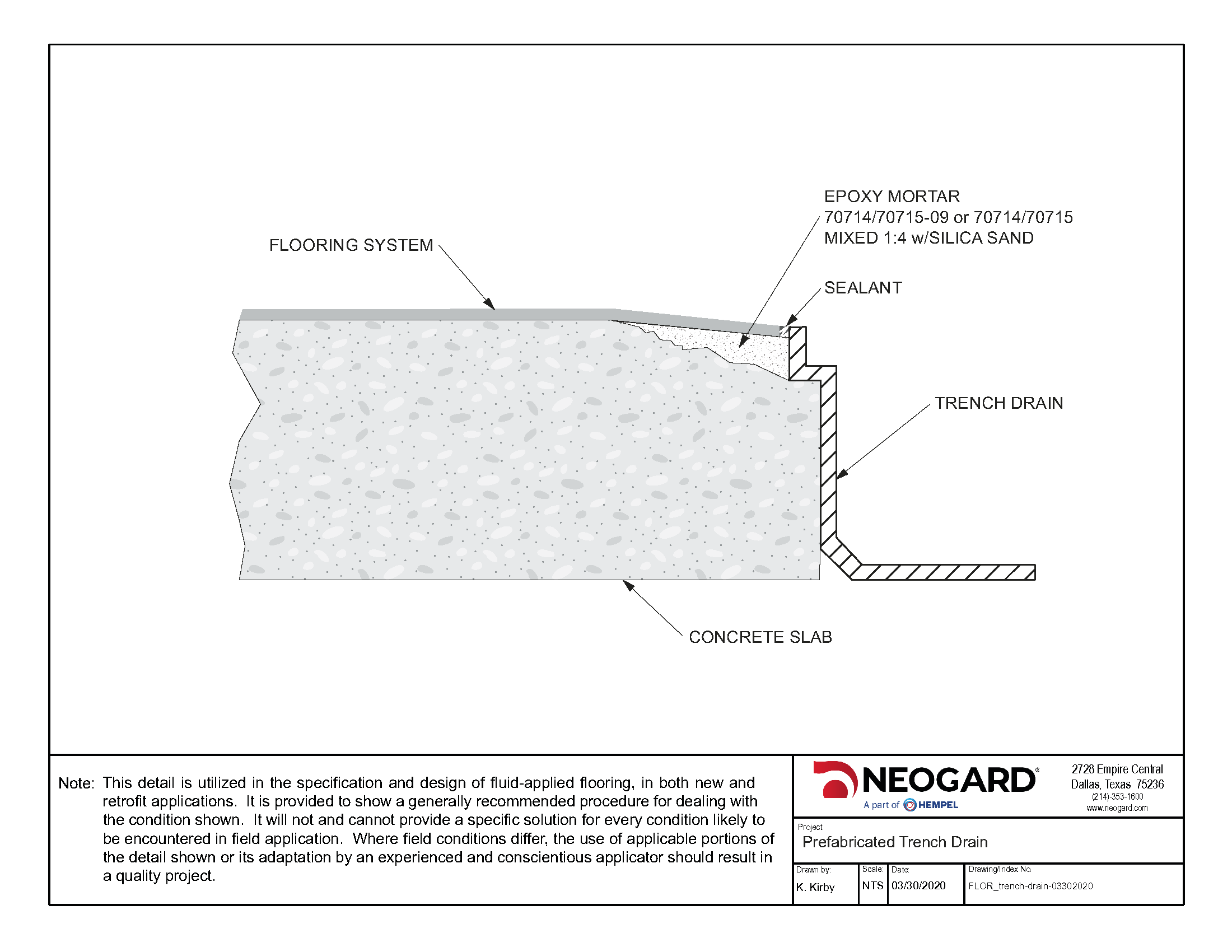

Prefabricated Trench Drain

prefabricated trench drain

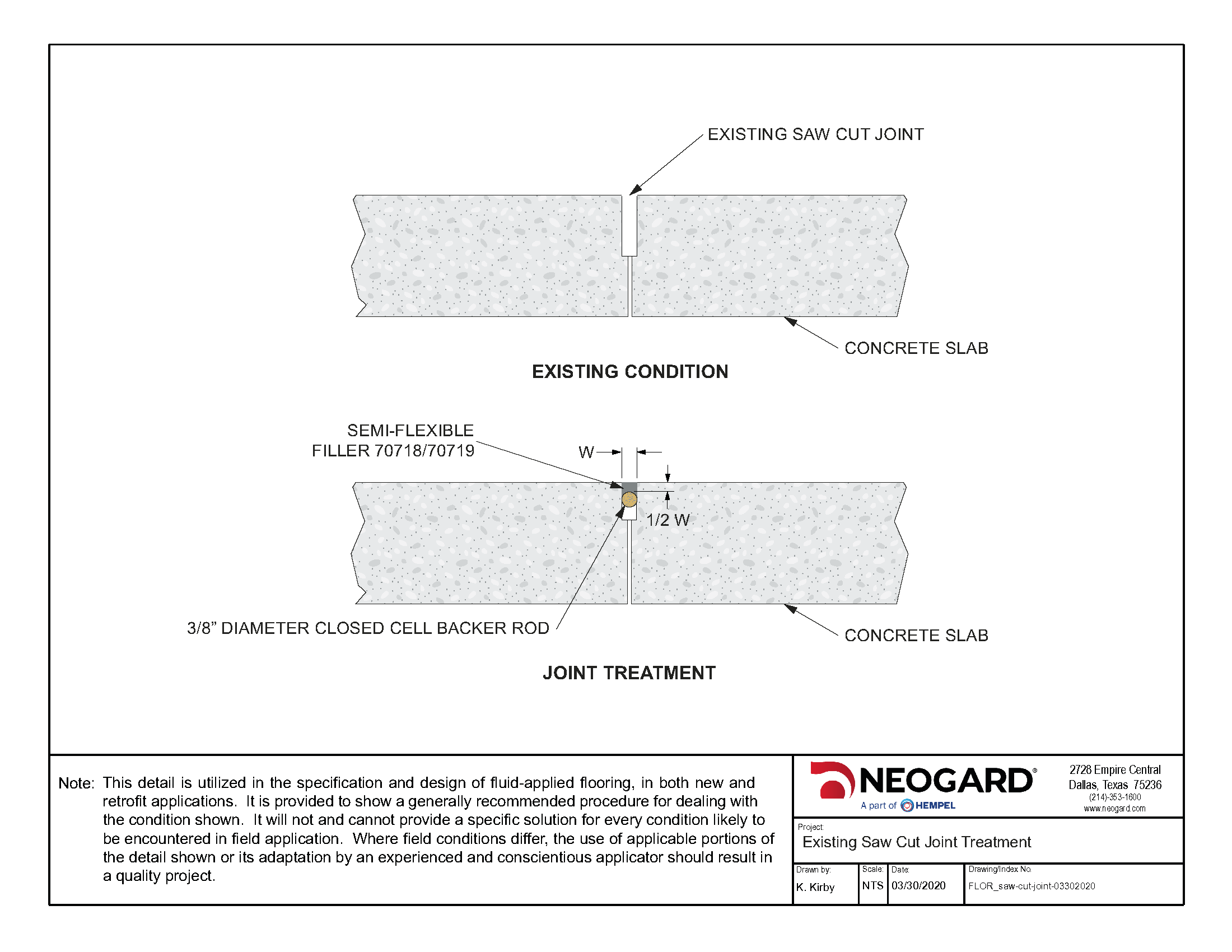

Existing Saw Cut Joint Treatment

existing saw cut

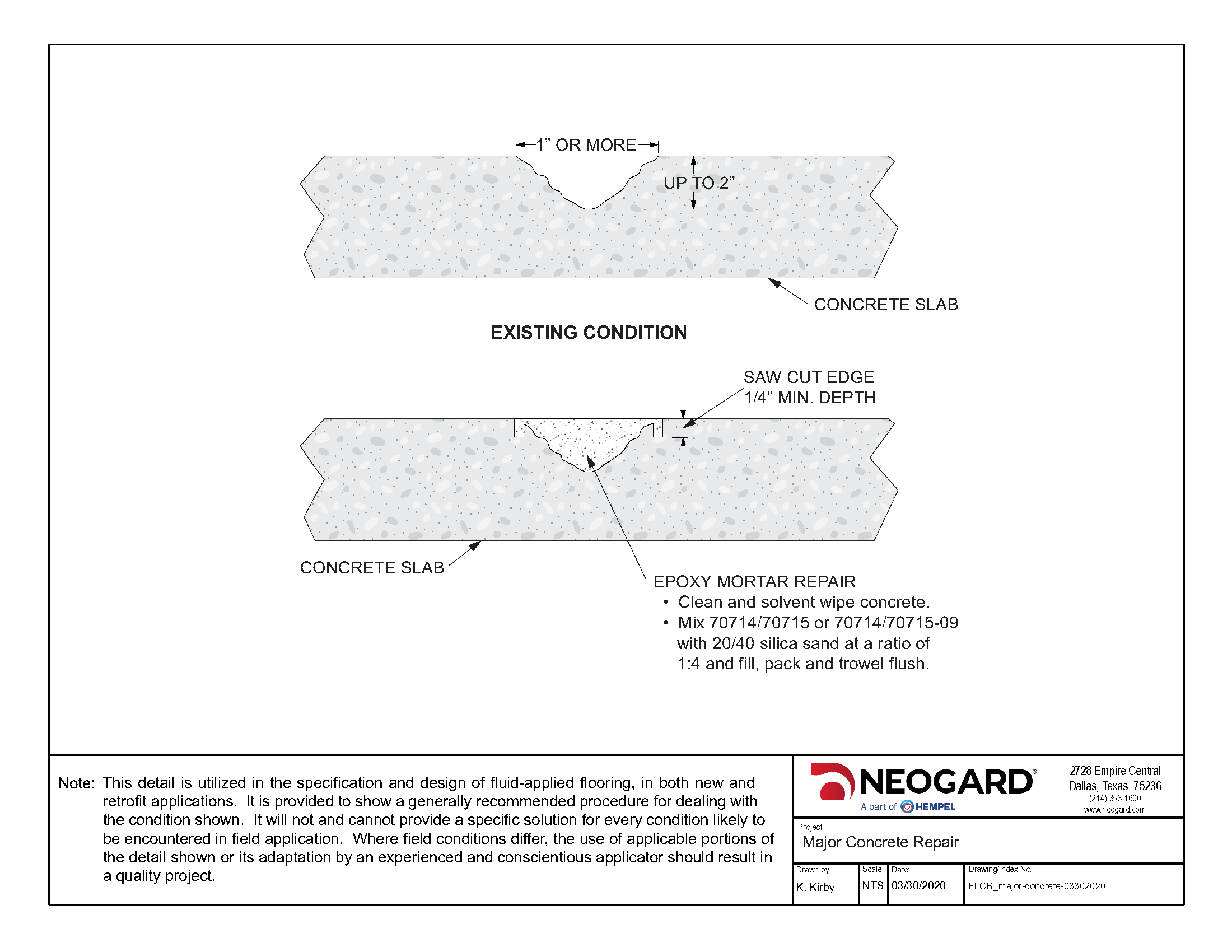

Major Concrete Repair

major concrete repair

Area Drain

area drain

Thin Film Floor Area Drain

thin film floor



Roofing

SPF Roof Drain

spf roof drain

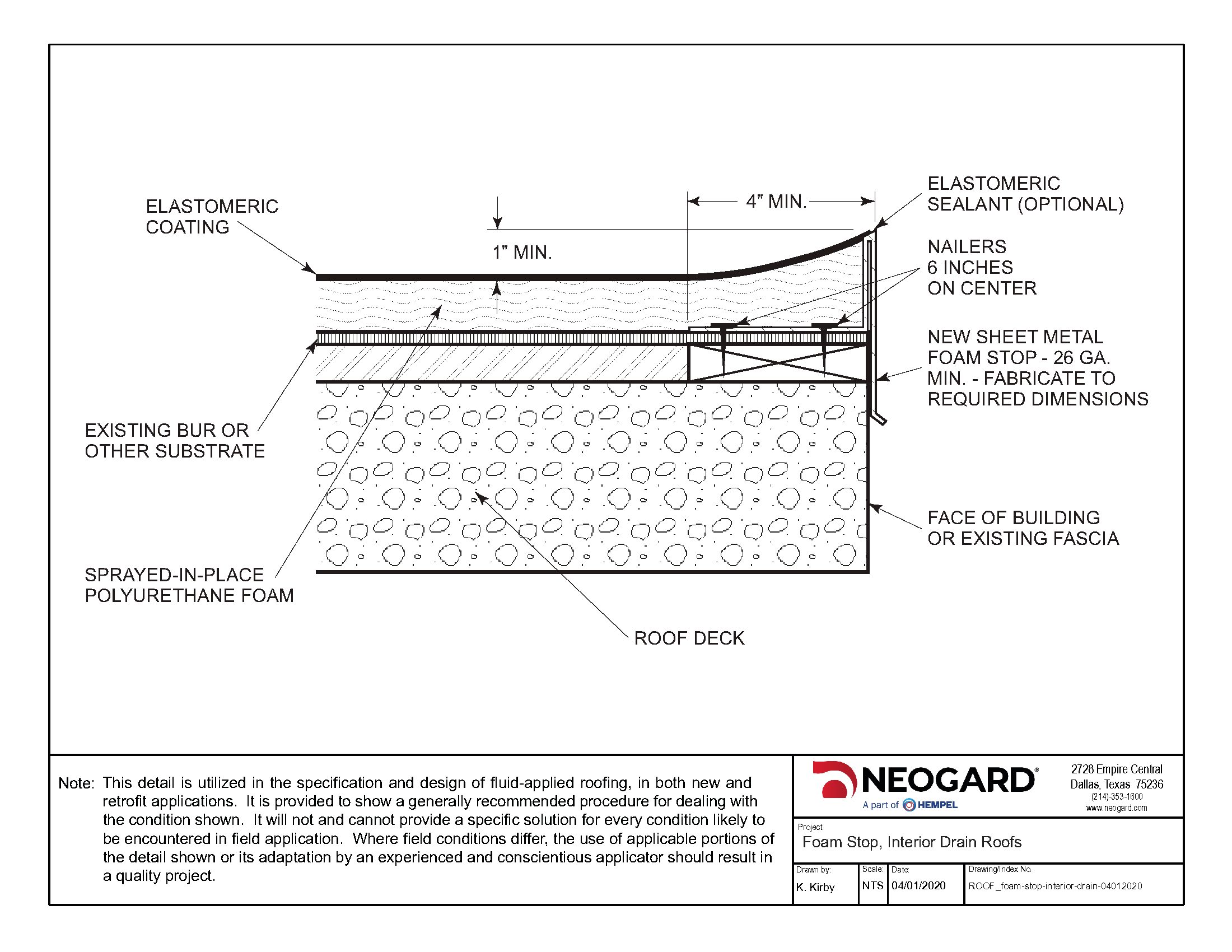

SPF Foam Stop

spf foam stop

SPF Gravel Stop

spf gravel stop

SPF Parapet Wall

spf parapet wall

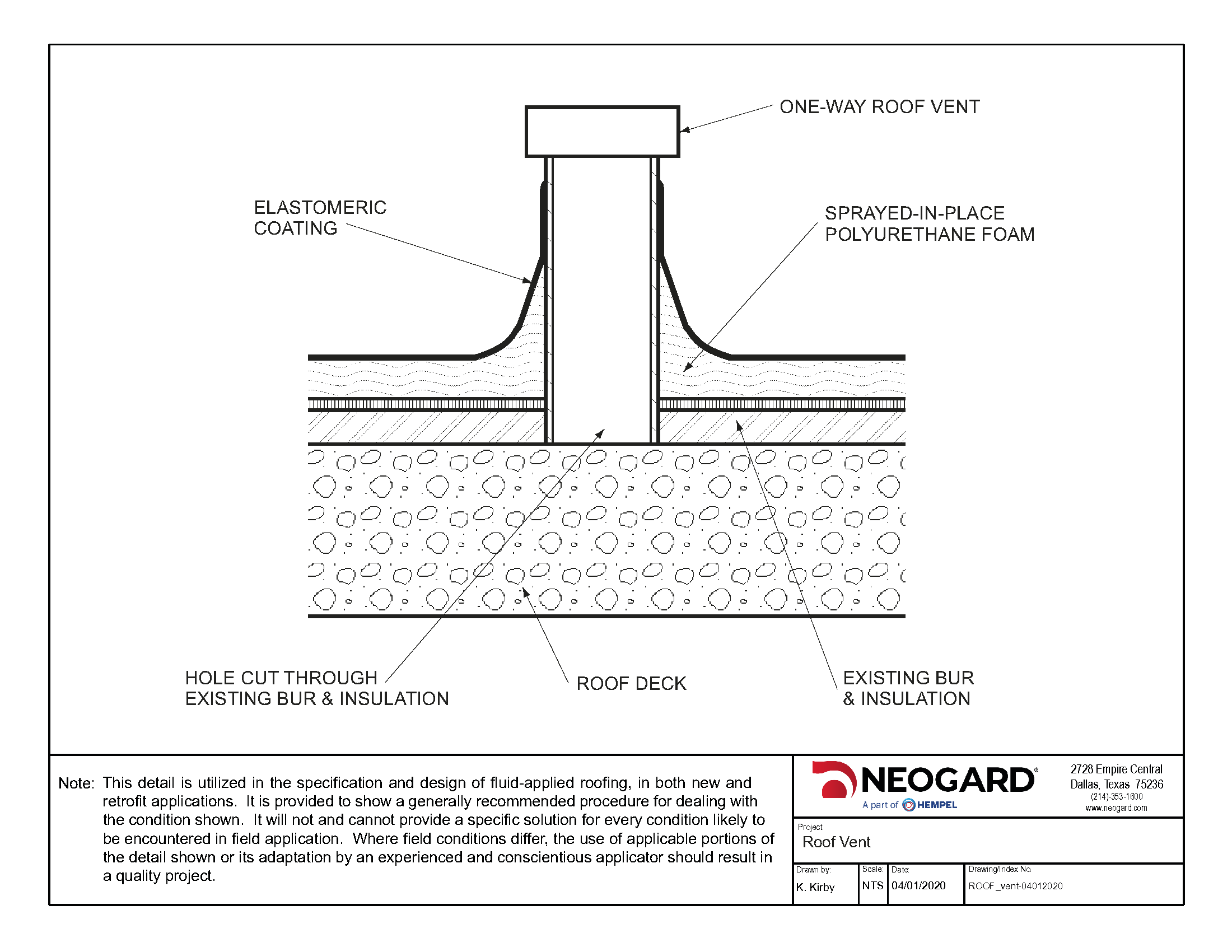

SPF Roof Vent

spf roof vent

SPF Vertical Projection

spf vertical projection

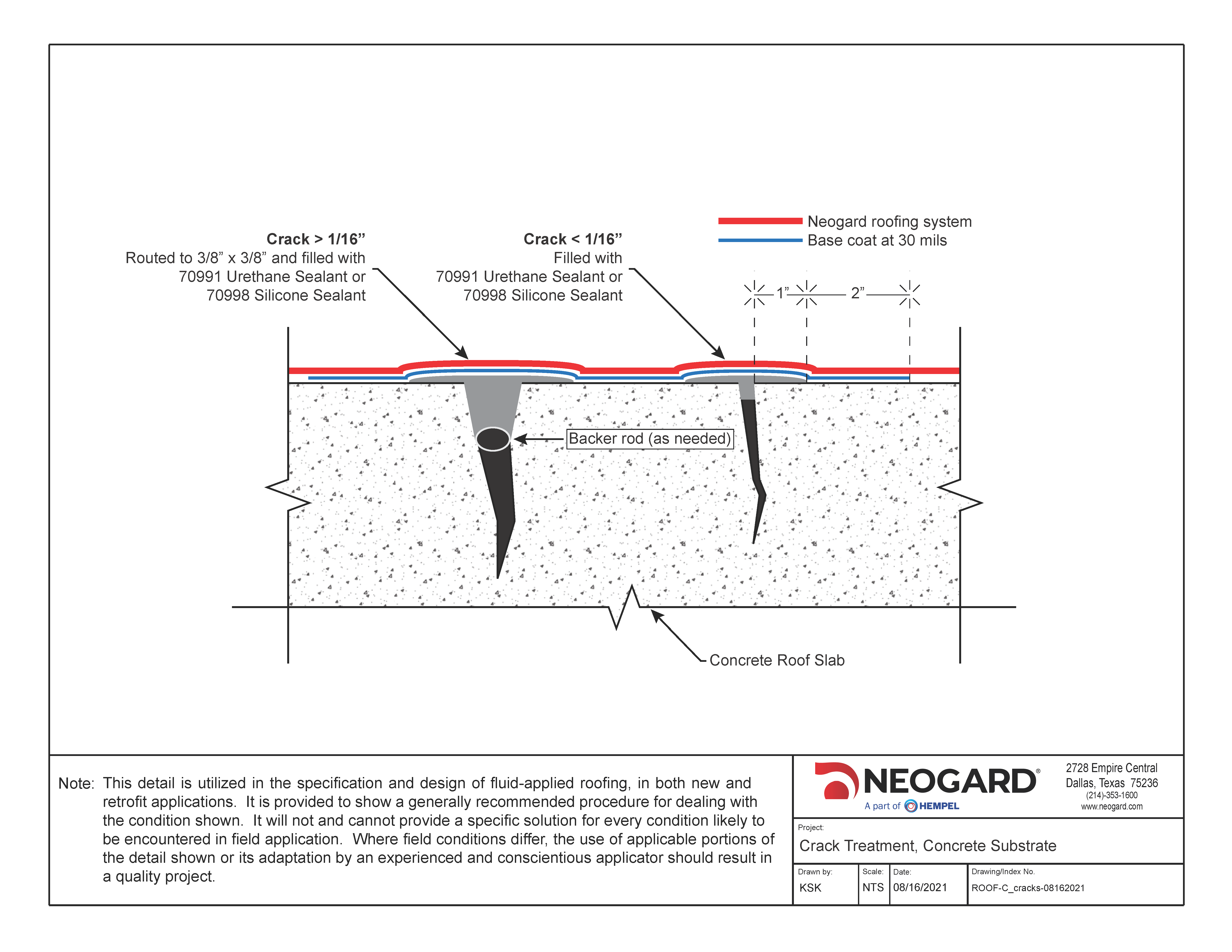

Concrete Crack Treatment

Concrete Crack Treatment

Concrete Drain

Concrete Drain

Concrete Parapet

Concrete Parapet

Concrete Pipe Penetration

Concrete Pipe Penetration

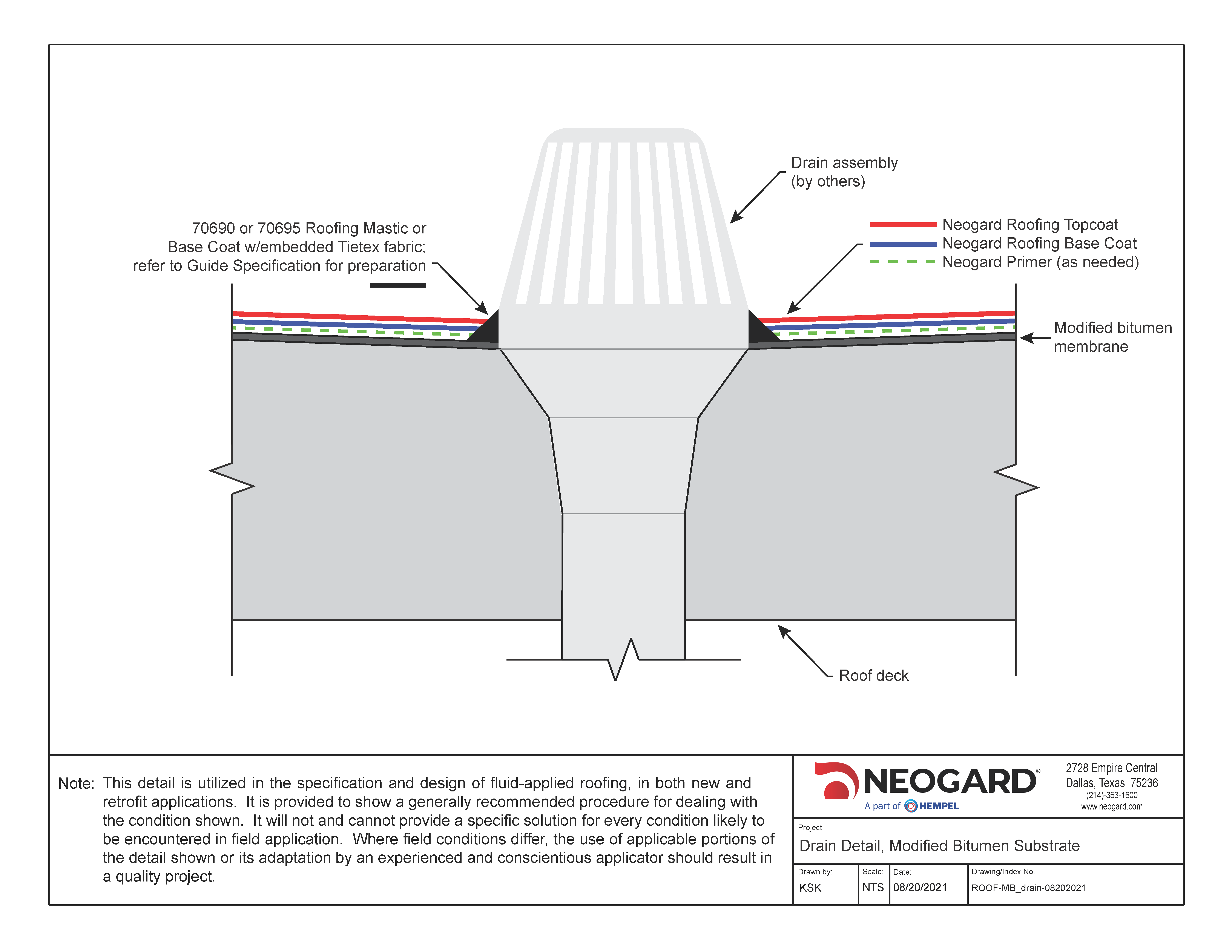

Modified Bitumen Drain

Modified Bitumen Drain

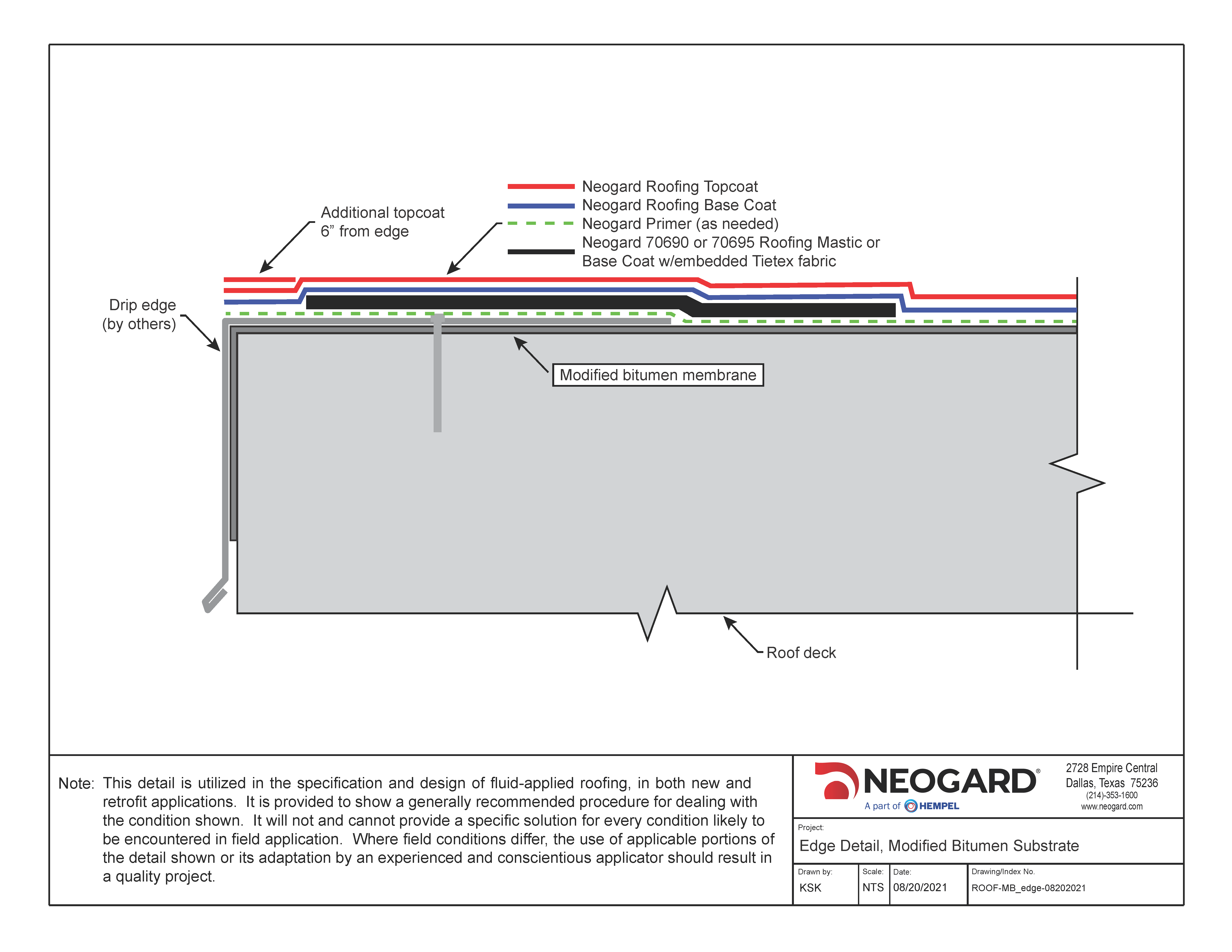

Modified Bitumen Edge

Modified Bitumen Edge

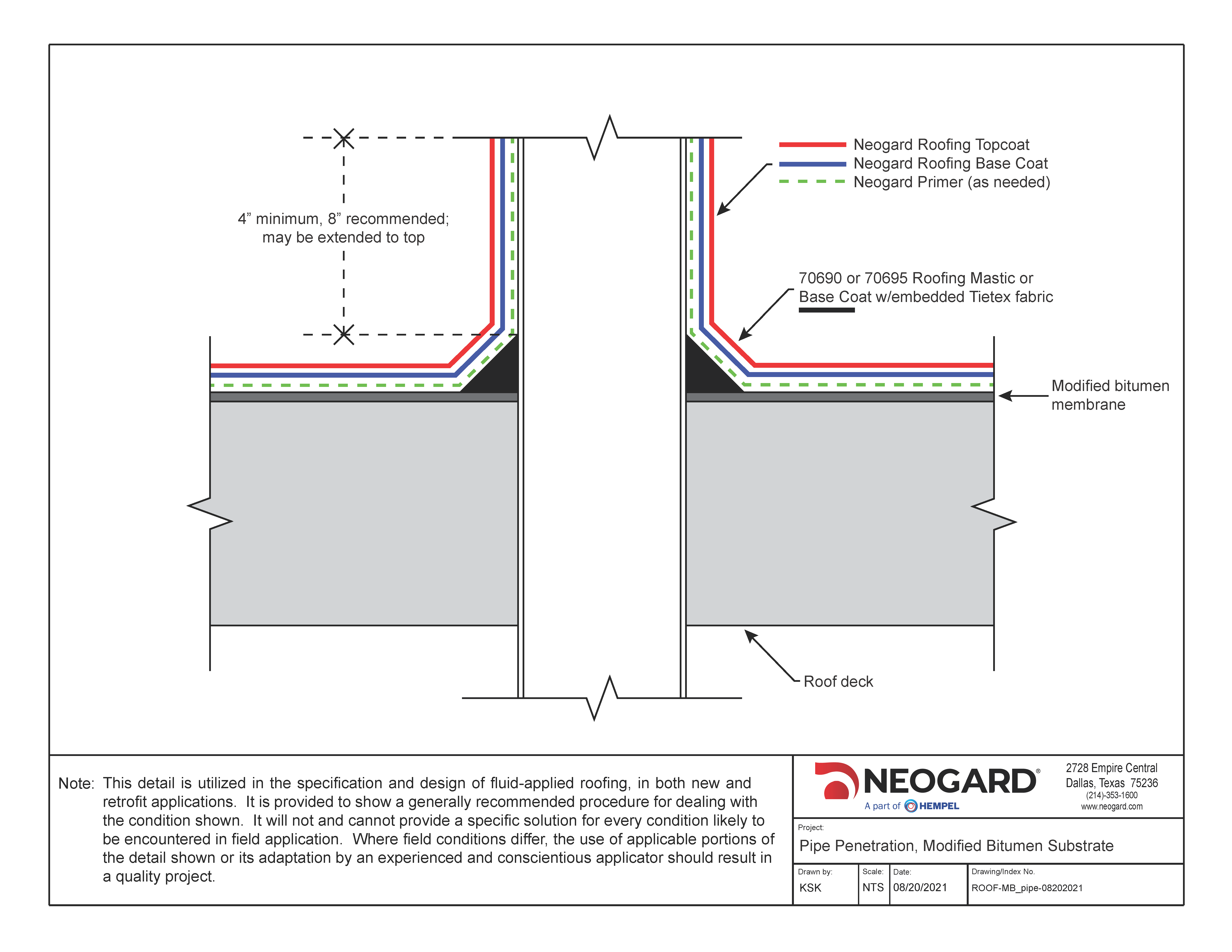

Modified Bitumen Pipe Penetration

Modified Bitumen Pipe Penetration

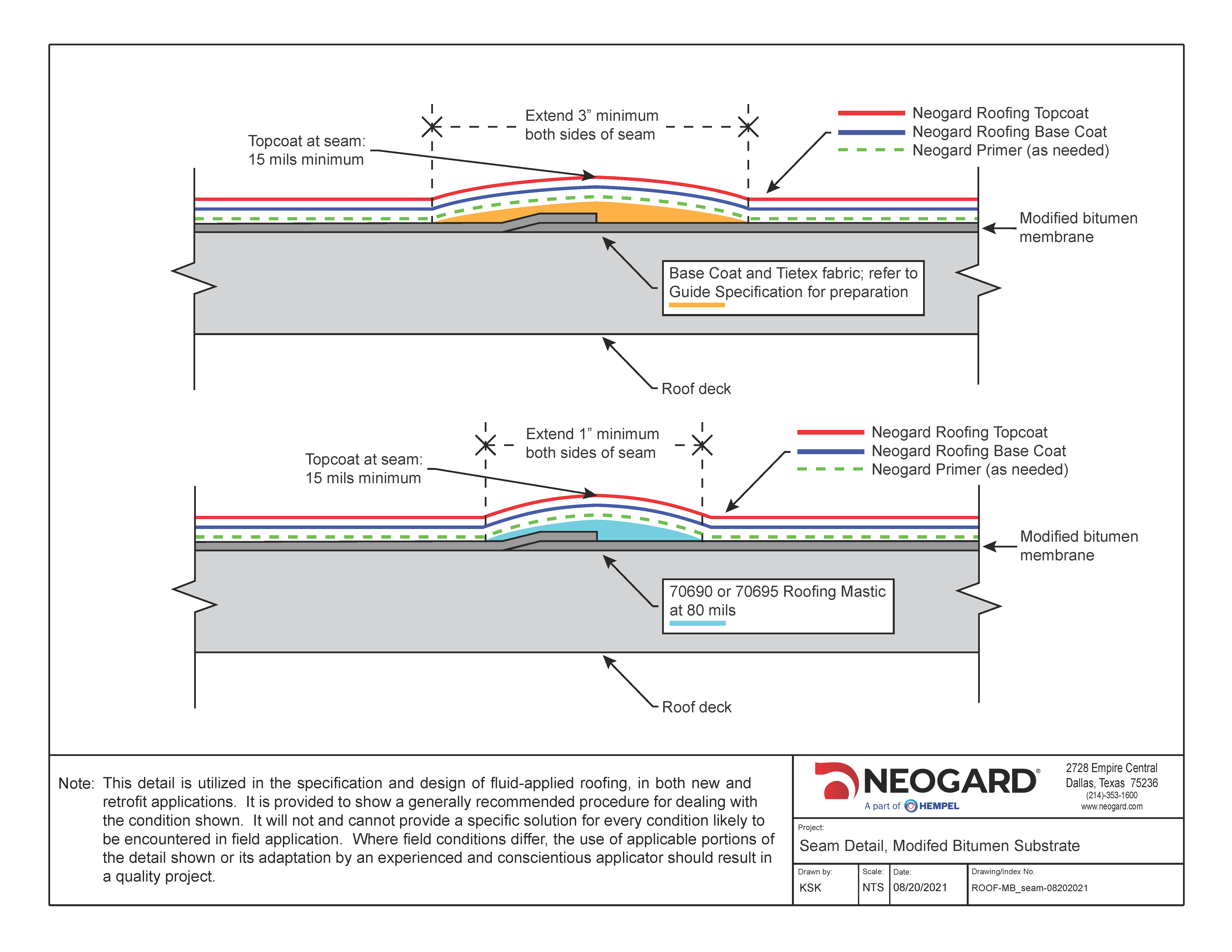

Modified Bitumen Seam Treatment

Modified Bitumen Seam Treatment

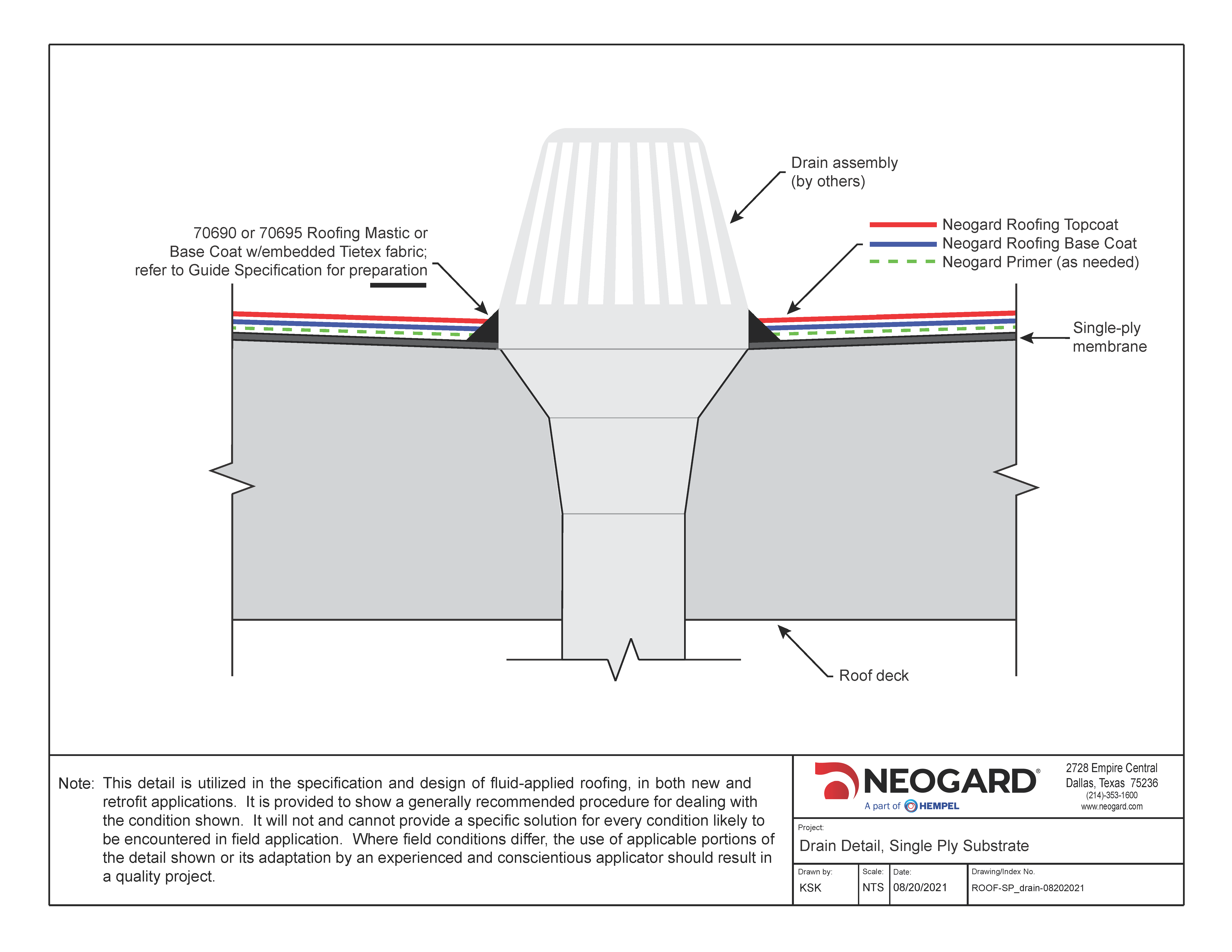

Single Ply Drain

Single Ply Drain

Single Ply Edge

Single Ply Edge

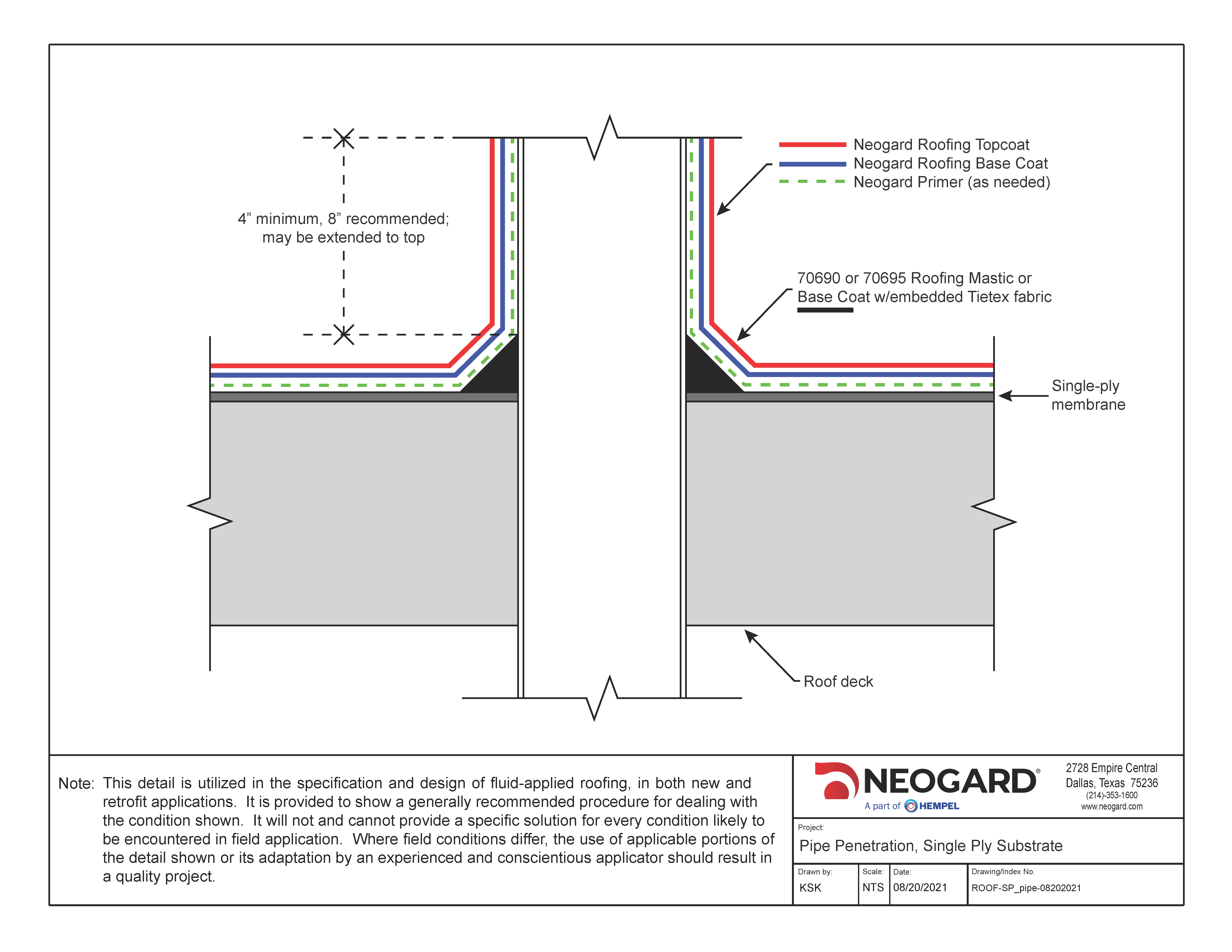

Single Ply Pipe Penetration

Single Ply Pipe Penetration

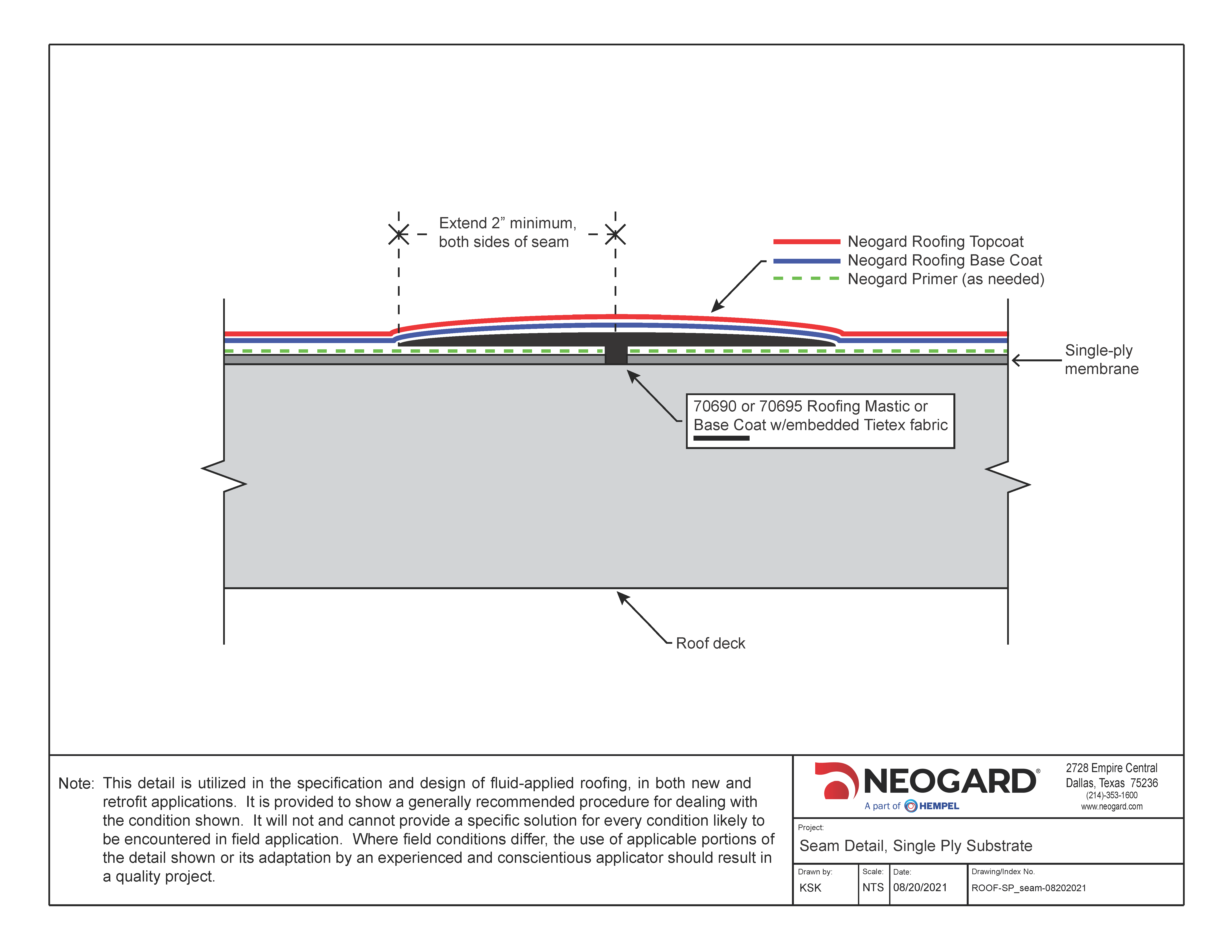

Single Ply Seam Treatment

Single Ply Seam Treatment
