Home | Coating Systems | Wall Coating Systems | Interior Wall Coatings | Wall-Gard HD
banner image

Wall-Gard HD

High performance water-based urethane wall system

Wall-Gard HD is a high-performance wall coating system with an optional fabric reinforcement for added protection against impacts from carts, equipment, and rolling racks.

Product Specifications
Application Methods
Product Literature
Technical Documents
FAQs

System Overview

Our Wall-Gard HD system is a game-changing wall coating. Its exceptional scrub and chemical resistance make it ideal for environments where maintaining a sanitary or sterile environment is essential. Optional fabric reinforcement protects walls from equipment strikes. Its low VOC is well below South Coast AQMD standards, and produces little odor. With a durability four times greater than standard interior paint, facilities can achieve a 75% reduction in lifecycle cost by extending repaint cycles and reducing the facilities out-of-service time.

Wall-Gard HD urethanes are available in gloss, semi-gloss, and satin finishes. Also, they are used in our Floor-Gard HD floor coating system, allowing applicators to use the same materials on walls and floors, creating a seamless barrier from floor to ceiling.

Contact Us

Selected Physical Properties

Product Description Test Method Results
70900/70910, gloss finish Impact Resistance ASTM D2794 120 lbs/in
70900/70910, gloss finish Pencil Hardness ASTM D3363 4H Gouge
70901/70910, semi-gloss finish Pencil Hardness ASTM D3363 4H Gouge
70902/70910, satin finish Pencil Hardness ASTM D3363 4H Gouge

Consult Neogard Product Data Sheets and Guide Specifications for a complete list of physical properties.

Use Area:

Hospitals, Education, Food/Beverage, Pharmaceutical, Institutional

Type:

Waterborne Urethane

Features:

  • High durability
  • Anti-microbial
  • Cleanable
  • High chemical resistance

Benefits:

  • Reduction in lifecyle costs
  • Does not harbor mold or fungal growth
  • Scrub resistant finish

Ask us about Wall-Gard HD

Our Neogard Experts team is glad to tell you how Wall-Gard HD is the best coating system to protect your investment.

1-833-443-6735

Contact Us

Wall-Gard HD Systems Builds

Before application, always check Neogard Product Data Sheets and Guide Specifications for mixing instructions and other important information.

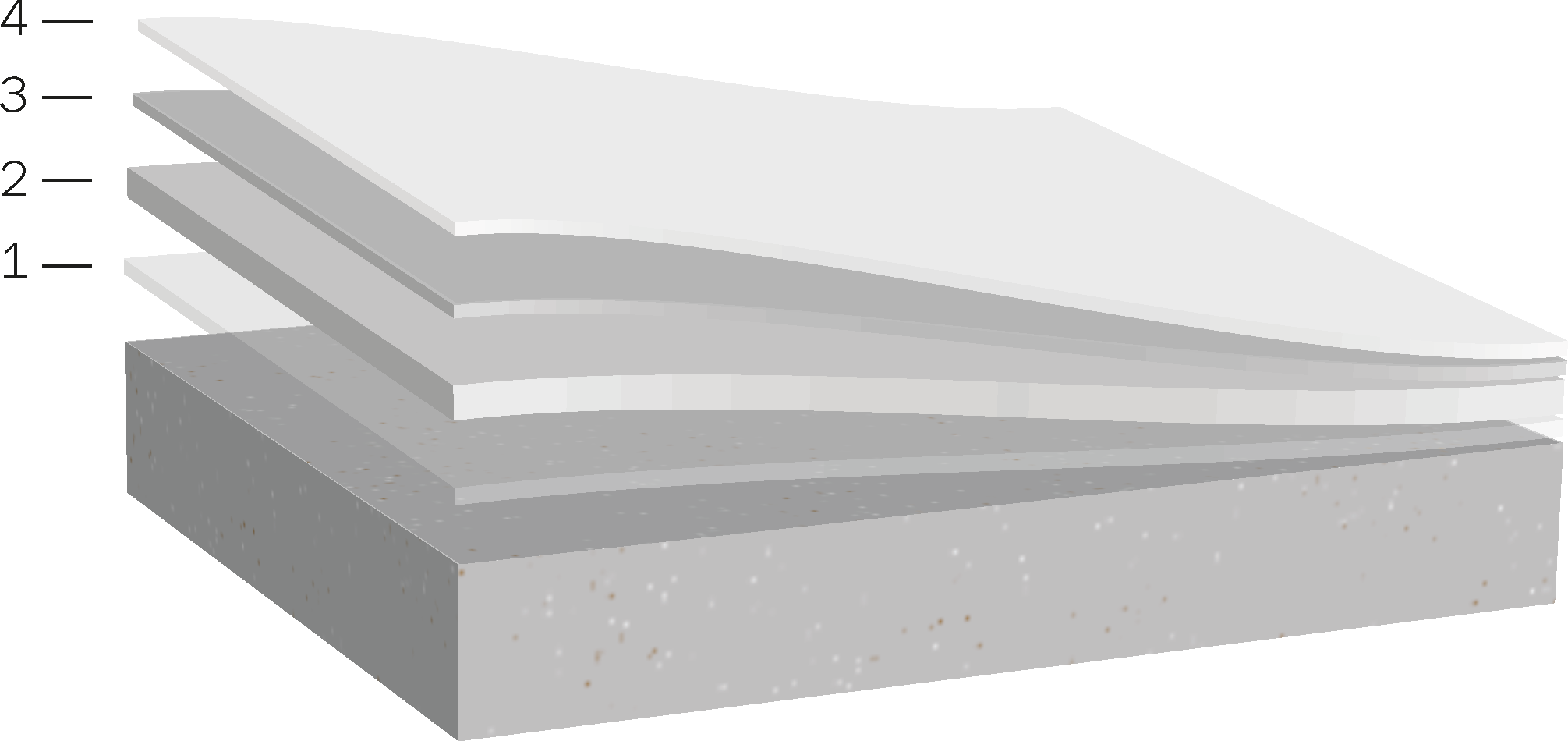

Concrete or Block Wall, Series 1: Standard

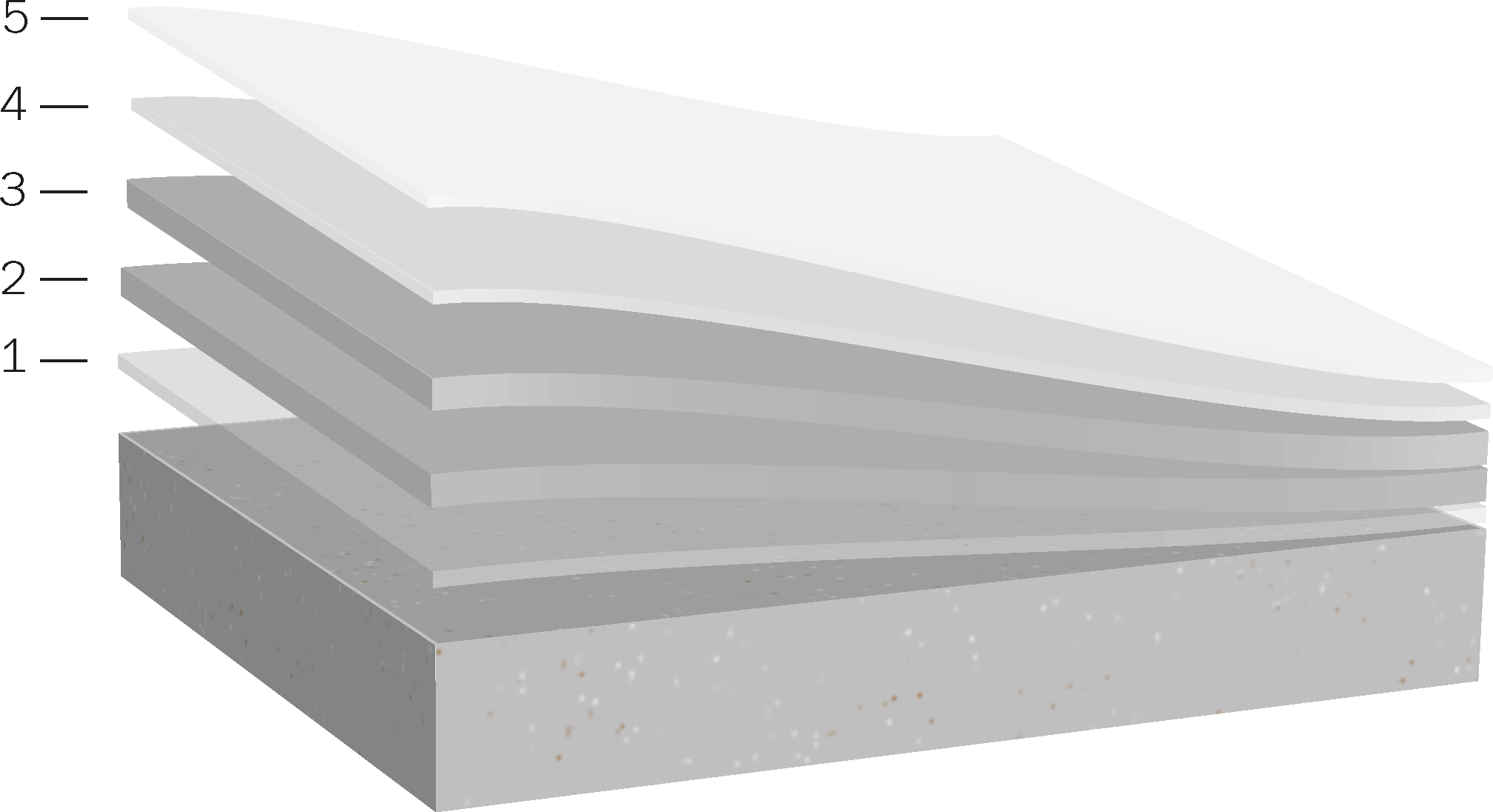

Concrete or Block Wall, Series 2: Fabric Reinforced

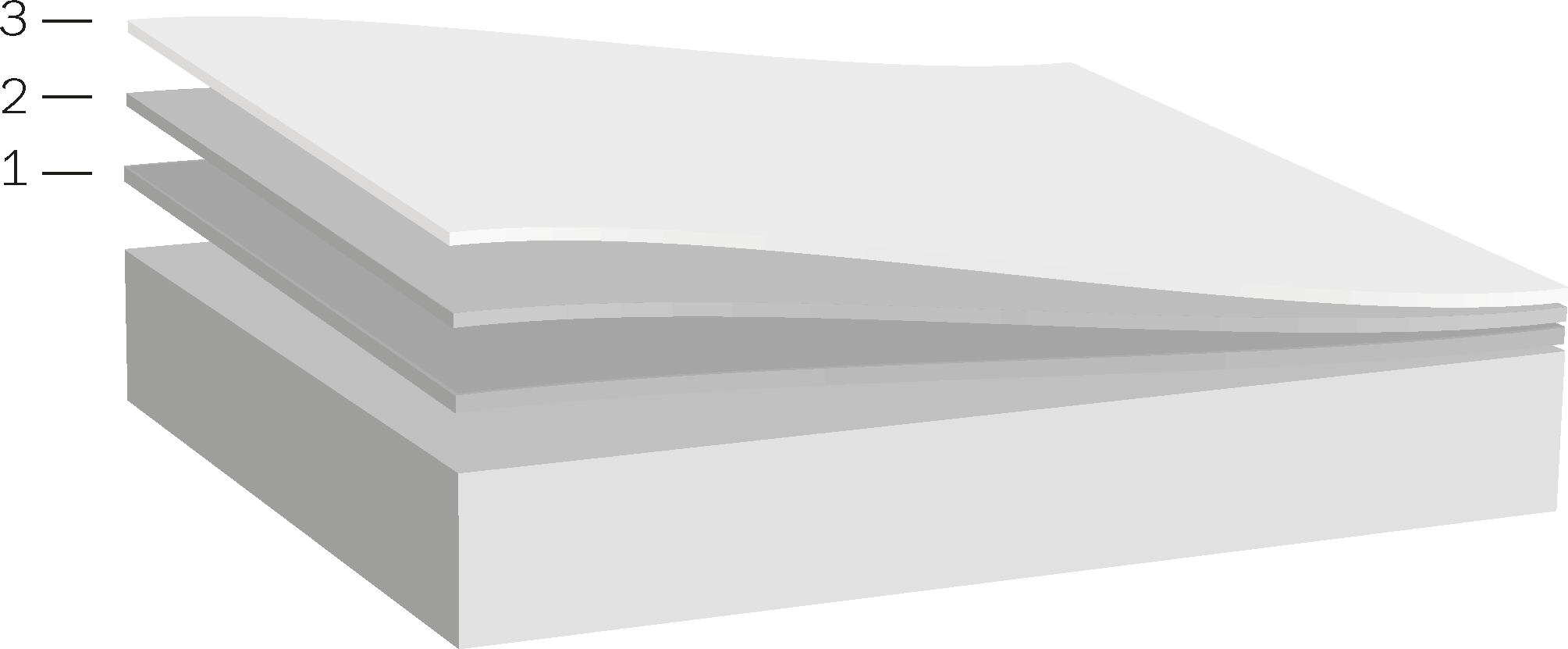

Drywall, Series 1: Standard
Drywall, Series 2: Fabric Reinforced

Wall-Gard HD

Coat Product Coverage Rate Mils WFT/DFT
4 - 2nd Topcoat Wall-Gard HD:
70900/70910 or
70901/70910 or
70902/70910
200-267 sf/gal 8/6 to 6/3
3 - 1st Topcoat Wall-Gard HD:
70900/70910 or
70901/70910 or
70902/70910
200-267 sf/gal 8/6 to 6/3
2- Base 70724/70725 epoxy 100 sf/gal 16/16
1 - Primer 70714/70715 epoxy 320 sf/gal 6/6



Wall-Gard HD

Coat Product Coverage Rate Mils WFT/DFT
5 - 2nd Topcoat Wall-Gard HD:
70900/70910 or
70901/70910 or
70902/70910
200-267 sf/gal 8/6 to 6/3
4 - 1st Topcoat Wall-Gard HD:
70900/70910 or
70901/70910 or
70902/70910
200-267 sf/gal 8/6 to 6/3
3 - 2nd Base 70724/70725 epoxy 100 sf/gal 16/16
2- 1st Base 70724/70725 epoxy +
63UJB fiberglass mesh
100 sf/gal 16/16
1 - Primer 70714/70715 epoxy 320 sf/gal 6/6



Wall-Gard HD

Coat Product Coverage Rate Mils WFT/DFT
3 - 2nd Topcoat Wall-Gard HD:
70900/70910 or
70901/70910 or
70902/70910
200-267 sf/gal 8/6 to 6/3
2 - 1st Topcoat Wall-Gard HD:
70900/70910 or
70901/70910 or
70902/70910
200-267 sf/gal 8/6 to 6/3
1 - Primer Polyvinyl Acetate (PVA). Follow manufacturer's recommendations.



Wall-Gard HD

Coat Product Coverage Rate Mils WFT/DFT
5 - 2nd Topcoat Wall-Gard HD:
70900/70910 or
70901/70910 or
70902/70910
200-267 sf/gal 8/6 to 6/3
4 - 1st Topcoat Wall-Gard HD:
70900/70910 or
70901/70910 or
70902/70910
200-267 sf/gal 8/6 to 6/3
3 - 2nd Base 70724/70725 epoxy 100 sf/gal 16/16
2- 1st Base 70724/70725 epoxy +
63UJB fiberglass mesh
100 sf/gal 16/16
1 - Primer Polyvinyl Acetate (PVA). Follow manufacturer's recommendations.



Product Literature

Files may be downloaded individually or in a submittal package. Choose a language to select a file. Select one file and click the download button to the right, or select multiple files and click the “Download Selected” button below.

Technical Documents

Files may be downloaded individually or in a submittal package. Choose a language to select a file. Select one file and click the download button to the right, or select multiple files and click the “Download Selected” button below.


Safety Data Sheets (SDS)

FAQs

What areas of my facility are appropriate for this system?

Interior walls in hospitals, schools, pharmaceutical, food/beverage and all commercial facilities.

How will this system reduce life cycle costs?

Exceptional scrub resistance is more than twice that of other high performance wall systems and four times that of traditional latex paint.

How can this system be used for recoating existing wall systems?

Recoating may require sanding of glossy paint surfaces, flat latex coatings may be coated over without surface prep.

How long will the system last with daily cleaning?

Three years plus with constant abuse.  Will depend upon substrate and base system chosen.

What are the general recommendations for applying this system?

Please see WallGard HD technical data for systems 1-3 including concrete block, concrete and drywall.

When should I use fiberglass mat reinforcement with the system?

Embed fiberglass mat into system whenever you want to strengthen drywall integrity and protect wall from impact resistance by wheeled carts, etc.

You can trust Wall-Gard HD in your next project

High-performance protection tested under the harshest environments. Wall-Gard HD is a high-performance wall coating system with an optional fabric reinforcement for added protection against impacts from carts, equipment, and rolling racks.
