Epoxy Decorative Quartz System

Decorative, Durable Epoxy Quartz Systems

Hybri-Gard™ EQ combines the strength of epoxy with the beauty of decorative quartz to create a seamless, slip-resistant surface that performs in demanding environments. Built on a Neocrete SL urethane-cement base and sealed with an epoxy topcoat, this system offers long-term protection, chemical resistance, and excellent durability. Hybri-Gard EQ provides a refined, low-maintenance finish that withstands daily traffic while elevating the appearance of any facility.

Product Specifications
Application Methods
Product Literature
Technical Documents
FAQs

System Overview

The Hybri-Gard™ EQ system combines a Neocrete SL urethane-cement base, a decorative quartz broadcast, and an epoxy topcoat to deliver a seamless, high-performance surface built for longevity. Engineered to withstand heavy traffic, abrasion, and chemical exposure, EQ is ideal for environments that demand both resilience and refinement.

From commercial kitchens and locker rooms to supermarkets, restaurants, hotels, and offices, Hybri-Gard EQ enhances every space with its textured quartz finish. It offers natural slip resistance, easy maintenance, and lasting visual appeal.

Hybri-Gard EQ unites beauty and performance, creating a durable surface that supports safety, cleanliness, and design continuity across any facility.

Selected Physical Properties

Product	Description	Test Method	Results
70817/70818 clear/tinted CRU	Shore D	ASTM D2240	70
70817/70818 clear/tinted CRU	Taber Abrasion	ASTM D4060	23 mg/1,000 CS-17
70817/70818 clear/tinted CRU	Anti-Microbial	JIS Z 2801-2010	Pass
70714/70715 epoxy	Compressive Strength	ASTM D695	25,300 psi

Consult Neogard Product Data Sheets and Guide Specifications for a complete list of physical properties.

Use Area:

Type:

Epoxy Decorative Quartz Broadcast System

Features:

Decorative quartz broadcast sealed with an epoxy topcoat
Seamless, slip-resistant, and easy-to-clean surface
Exceptional abrasion, impact, and chemical resistance
Customizable color blends and quartz sizes
Durable system designed for continuous service in demanding environments

Benefits:

Long-lasting, low-maintenance flooring solution
Natural quartz finish enhances appearance and safety
Resists wear, chemicals, and daily traffic
Promotes cleanability and hygienic conditions
Customizable design options for visual and functional flexibility

Ask Us About Hybri-Gard™ EQ

Need help choosing the right flooring system? Our Neogard team can guide you through color options, performance requirements, and installation details to ensure the perfect fit for your space.

1-833-443-6735

Hybri-Gard EQ System Build

Always consult Neogard Product Data Sheets and Guide Specifications before installation to ensure proper mixing, coverage, and curing procedures are followed.

Neocrete SL

Broadcast Quartz

Epoxy Topcoat

CG16-ISOM

Coat	Product	Coverage Rate	Mils WFT/DFT
4 - Optional Texture	70714/70715 or 70817/70818 + 86500 Neogrip Spheres*	400 sf/gal	4/4
3 - Optional Chem/ UV Resistant	70817/70818	200 sf/gal	8/8
2 - Topcoat	70714/70715	160 sf/gal	10/10
1 - Primer	70714/70715	260 sf/gal	6/6

*See Guide Specification for instructions for adding 86500 Neogrip Spheres.

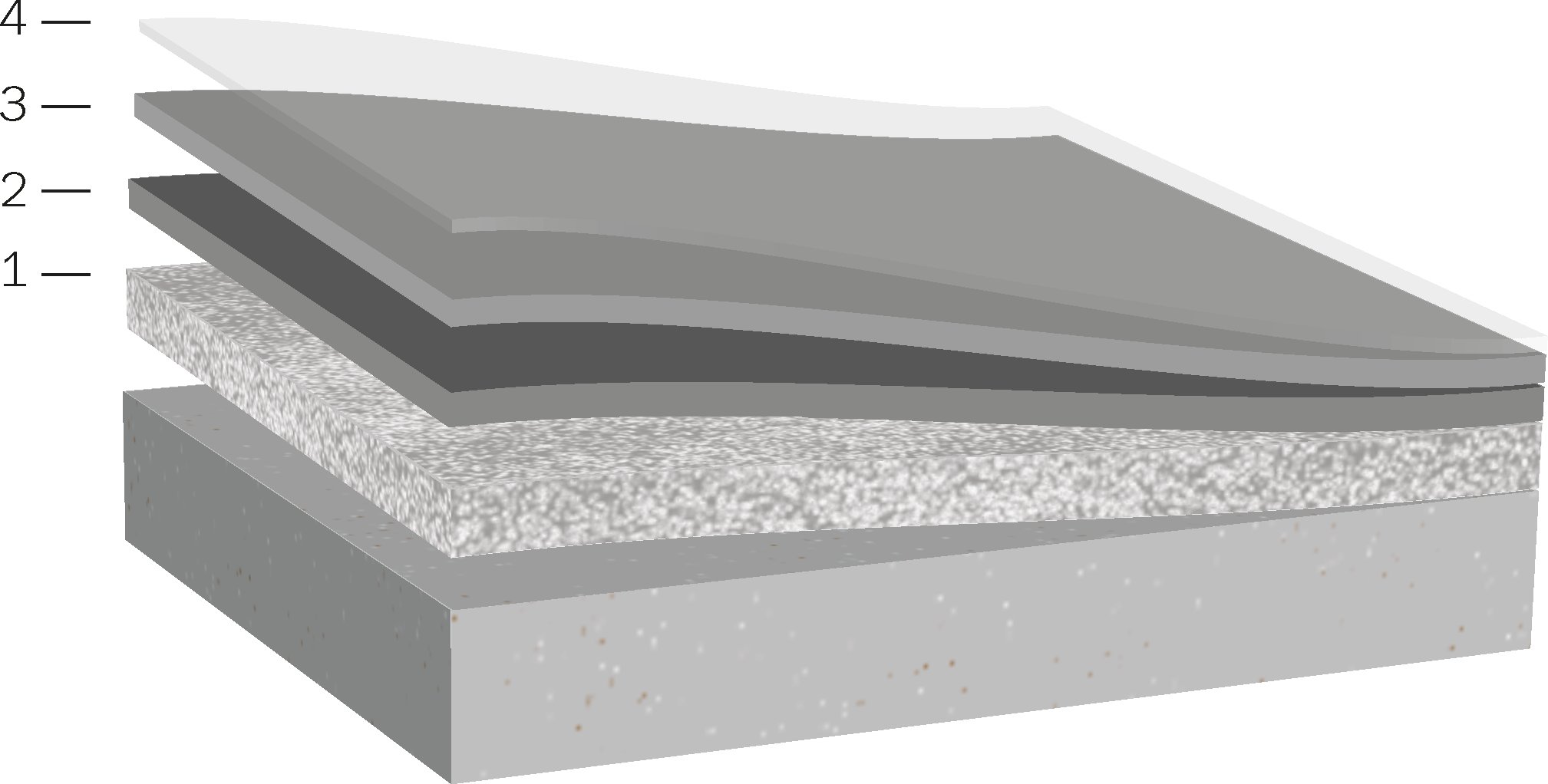

CG65-ISOM

Coat	Product	Coverage Rate	Mils WFT/DFT
4 - Optional Texture	70714/70715 or 70817/70818 + 86500 Neogrip Spheres*	400 sf/gal	4/4
3 - Optional Chem/ UV Resistant	70817/70818	200 sf/gal	8/8
2 - Topcoat	70714/70715	160 sf/gal	10/10
1 - Primer	70714/70715	260 sf/gal	6/6

*See Guide Specification for instructions for adding 86500 Neogrip Spheres.

CG32-ISOM

Coat	Product	Coverage Rate	Mils WFT/DFT
4 - Optional Texture	70714/70715 or 70817/70818 + 86500 Neogrip Spheres*	400 sf/gal	4/4
3 - Optional Chem/ UV Resistant	70817/70818	200 sf/gal	8/8
2 - Topcoat	70714/70715	160 sf/gal	10/10
1 - Primer	70714/70715	260 sf/gal	6/6

*See Guide Specification for instructions for adding 86500 Neogrip Spheres.

Product Literature

Files may be downloaded individually or in a submittal package. Choose a language to select a file. Select one file and click the download button to the right, or select multiple files and click the “Download Selected” button below.

Technical Documents

selected

Safety Data Sheets (SDS)

FAQs

Where can Hybri-Gard EQ be used?

This system is perfect for commercial, institutional, and industrial environments such as kitchens, locker rooms, supermarkets, restaurants, and healthcare facilities.

Can the color of the quartz be customized?

Multiple quartz colors and blends are available to match your project’s aesthetic or branding requirements.

How durable is Hybri-Gard EQ?

Hybri-Gard EQ is highly resistant to abrasion, impact, and chemicals, offering years of reliable performance even in high-traffic conditions.

Can it be installed over existing floors?

Yes, with proper surface preparation, Hybri-Gard EQ can be applied over existing concrete or resinous flooring systems.

Choose Hybri-Gard™ EQ for seamless strength and refined style.

Combining the durability of epoxy with the natural texture of quartz, this system delivers a slip-resistant, long-lasting finish that performs beautifully in even the most demanding environments.
