100% Solids Epoxy Flooring System

High-Performance 100% Solids Epoxy Flooring Systems

Hybri-Gard™ E flooring systems are 100% solids epoxy solutions designed for strength, longevity, and ease of maintenance. Engineered to withstand demanding commercial, institutional, and light-industrial environments, they provide exceptional chemical and impact resistance while maintaining a clean, uniform appearance. With proven durability and low lifecycle costs, Hybri-Gard E delivers dependable performance wherever durability and aesthetics must go hand in hand.

Product Specifications
Application Methods
Product Literature
Technical Documents
FAQs

System Overview

The Hybri-Gard™ E family brings together durable epoxy technology and a stable urethane-cement base to deliver long-lasting performance in demanding environments. Each system begins with Neocrete SL for strength and adhesion, then builds upward with broadcast and topcoat combinations tailored to different aesthetic and performance needs.

Whether it’s the decorative flake finish of Hybri-Gard EF, the refined quartz appearance of Hybri-Gard EQ, or the solid-color durability of Hybri-Gard EB, every E-series system provides seamless protection with excellent wear, impact, and chemical resistance. This series is a trusted choice for commercial, institutional, and industrial spaces alike.

Selected Physical Properties

Product	Description	Test Method	Results
X	X	X	X
X	X	X	X
X	X	X	X
X	X	X	X

Consult Neogard Product Data Sheets and Guide Specifications for a complete list of physical properties.

Use Area:

Type:

Epoxy Resin-Based Flooring Systems

Features:

100% solids, solvent-free epoxy formulations
Seamless, non-porous, and chemical-resistant surfaces
Compatible with flake, quartz, or aggregate broadcast options
Customizable colors, textures, and gloss levels
Outstanding mechanical strength and chemical resistance

Benefits:

Long-term protection in demanding service environments
Enhanced aesthetics with flexible design options
Excellent resistance to abrasion, impact, and staining
Low maintenance and easy to clean
Contributes to improved light reflectance and hygiene

Talk to a Neogard Expert

Discover which Hybri-Gard™ E system best fits your project. From decorative epoxy finishes to heavy-duty protection, our team will help you specify a flooring solution built to last.

1-833-443-6735

Hybri-Gard™ E System Build

Always consult Neogard Product Data Sheets and Guide Specifications before installation to ensure proper mixing, coverage, and curing procedures are followed.

Hybri-Gard EF

Hybri-Gard EQ

Hybri-Gard EB

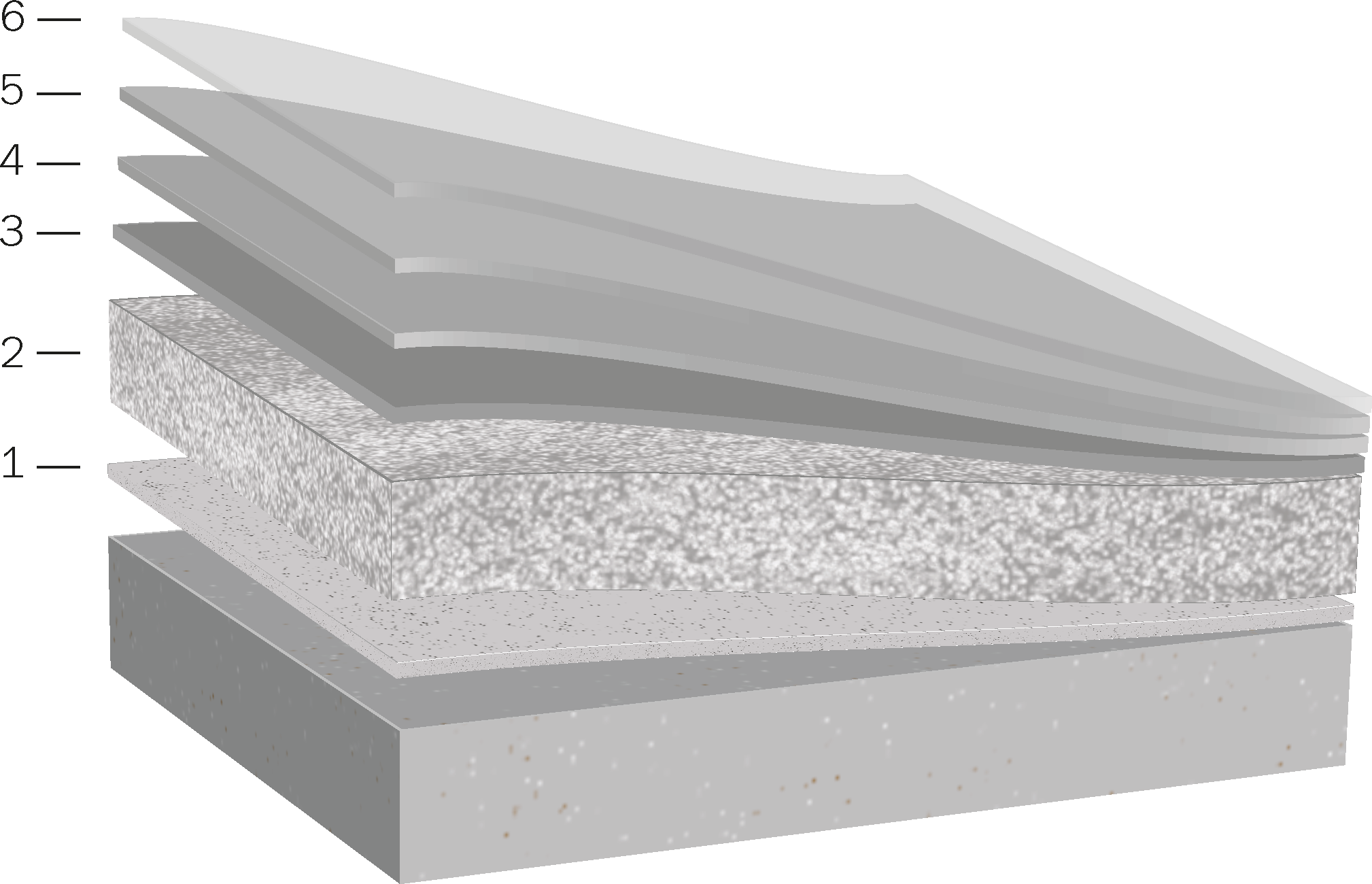

CG250T-ISOM

Coat	Product	Coverage Rate	Mils WFT/DFT
4 - Optional Texture	70714/70715 or 70817/70818 + 86500 Neogrip Spheres*	400 sf/gal	4/4
3 - Optional Chem/ UV Resistant	70817/70818	200 sf/gal	8/8
2 - Topcoat	70714/70715	160 sf/gal	10/10
1 - Primer	70714/70715	260 sf/gal	6/6

*See Guide Specification for instructions for adding 86500 Neogrip Spheres.

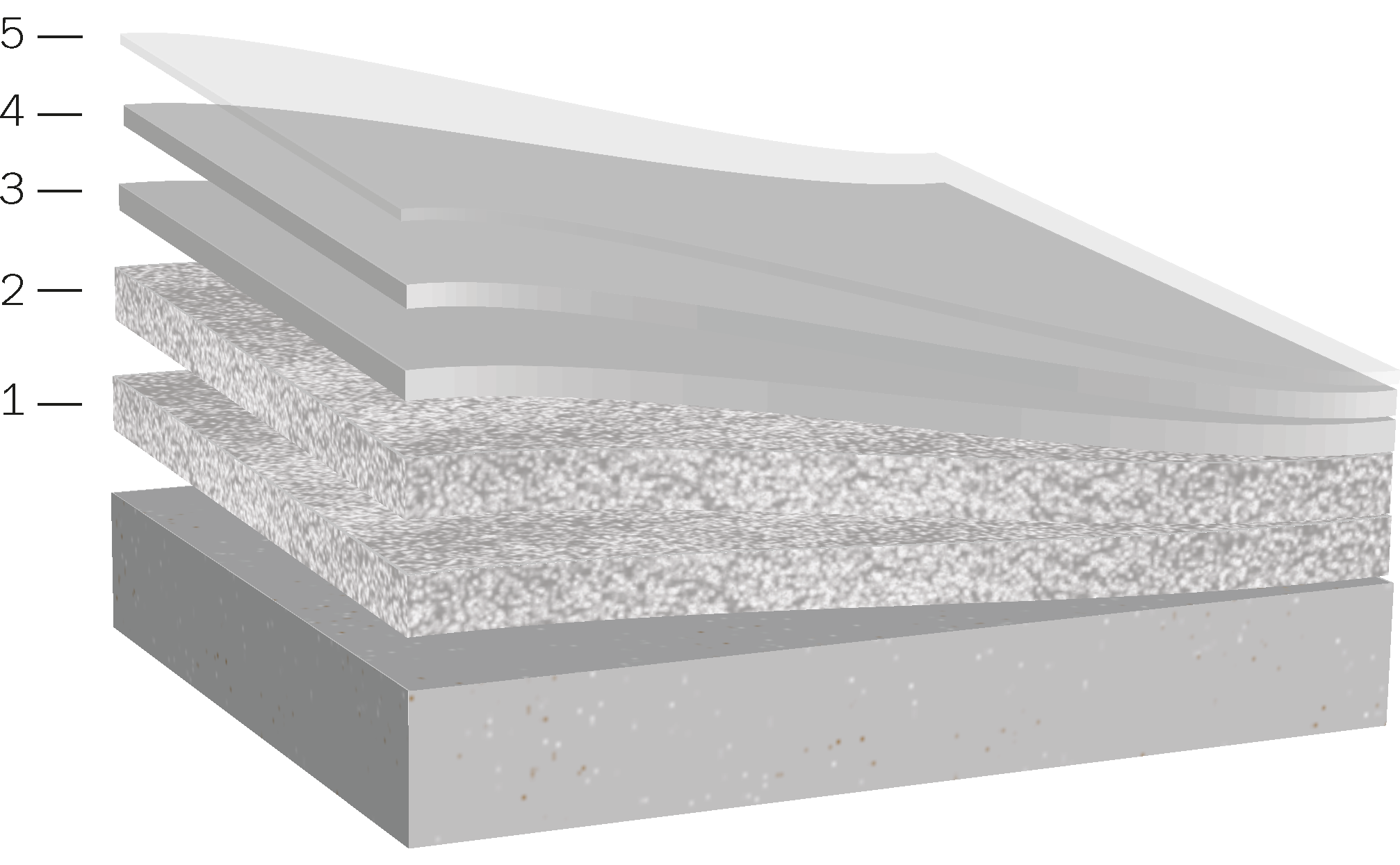

CG125-ISOM

Coat	Product	Coverage Rate	Mils WFT/DFT
4 - Optional Texture	70714/70715 or 70817/70818 + 86500 Neogrip Spheres*	400 sf/gal	4/4
3 - Optional Chem/ UV Resistant	70817/70818	200 sf/gal	8/8
2 - Topcoat	70714/70715	160 sf/gal	10/10
1 - Primer	70714/70715	260 sf/gal	6/6

*See Guide Specification for instructions for adding 86500 Neogrip Spheres.

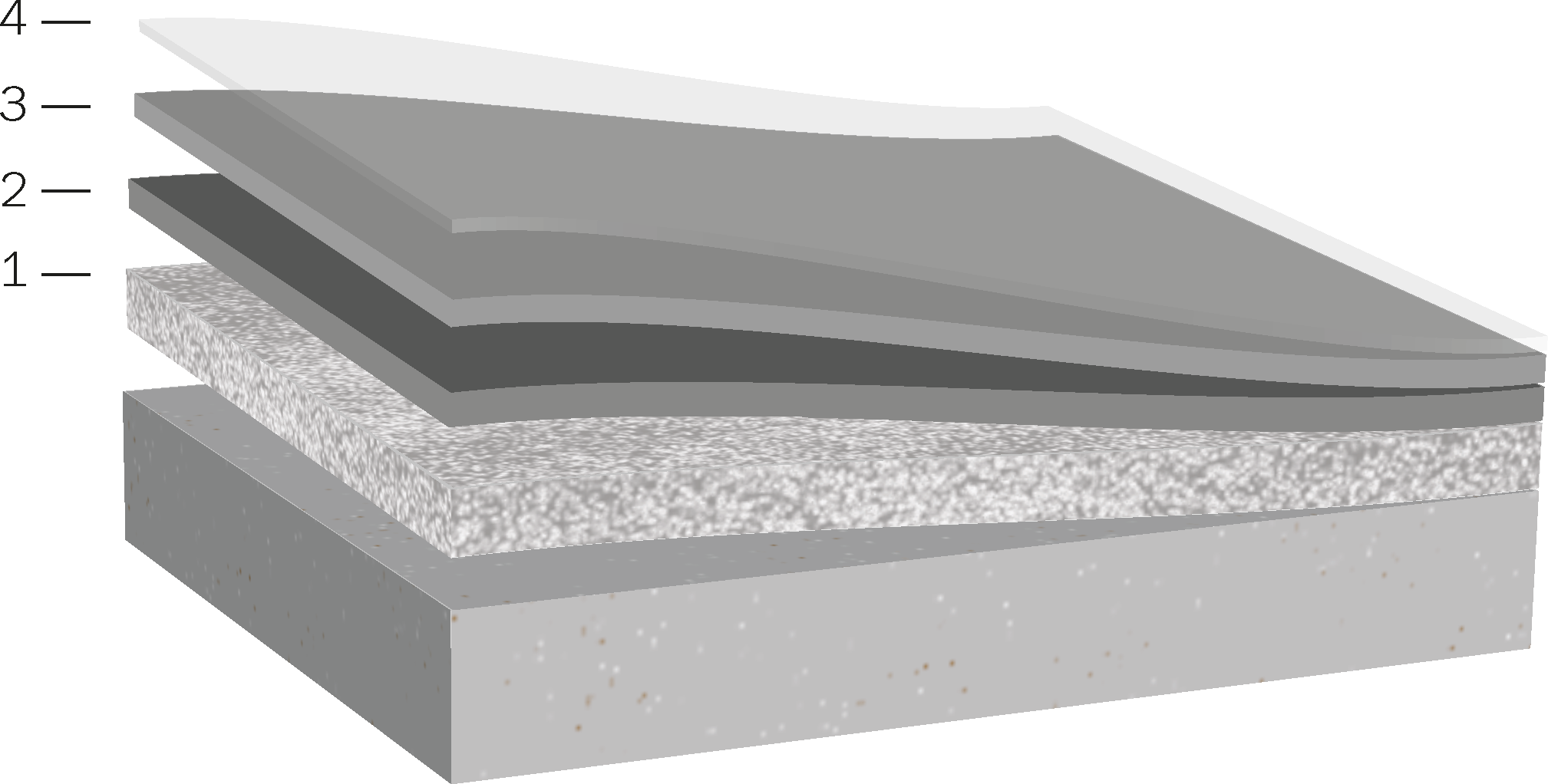

CG65-ISOM

Coat	Product	Coverage Rate	Mils WFT/DFT
4 - Optional Texture	70714/70715 or 70817/70818 + 86500 Neogrip Spheres*	400 sf/gal	4/4
3 - Optional Chem/ UV Resistant	70817/70818	200 sf/gal	8/8
2 - Topcoat	70714/70715	160 sf/gal	10/10
1 - Primer	70714/70715	260 sf/gal	6/6

*See Guide Specification for instructions for adding 86500 Neogrip Spheres.

Product Literature

Files may be downloaded individually or in a submittal package. Choose a language to select a file. Select one file and click the download button to the right, or select multiple files and click the “Download Selected” button below.

Technical Documents

selected

Safety Data Sheets (SDS)

FAQs

What makes epoxy systems ideal for commercial and industrial use?

Epoxy coatings offer superior strength, chemical resistance, and long-lasting durability compared to traditional concrete sealers or paints.

Are there design options for these systems?

Yes! Choose from decorative flake, quartz, or aggregate finishes to match aesthetic and slip-resistance needs.

Can Hybri-Gard E be applied over existing floors?

With proper surface preparation, these systems can be installed over existing concrete or resinous flooring.

How long do epoxy systems last?

Even under heavy traffic and exposure, with proper maintenance, Hybri-Gard E systems can provide years of reliable performance.

You can trust Hybri-Gard E in your next project.

A durable and decorative epoxy flake flooring system engineered for high performance, long-term protection, and exceptional design flexibility.
