Epoxy Decorative Flake System

Decorative, Durable Epoxy Flake Systems

Built on a Neocrete SL urethane-cement base and finished with an epoxy topcoat, this system delivers long-term protection, impact resistance, and a seamless aesthetic that enhances any space. Ideal for commercial, institutional, and industrial environments, Hybri-Gard EF resists abrasion, chemicals, and wear while providing an attractive, low-maintenance finish.

Product Specifications
Application Methods
Product Literature
Technical Documents
FAQs

System Overview

The Hybri-Gard™ E family combines the strength of epoxy technology with the stability of a Neocrete SL urethane-cement base, offering long-lasting protection across a range of decorative and functional applications. Within this series, Hybri-Gard EF stands out as the decorative flake option, delivering exceptional wear resistance, impact durability, and aesthetic versatility in one seamless system.

Each EF installation integrates Neocrete SL, a flake broadcast, and an epoxy topcoat to create a continuous, easy-to-clean surface that resists abrasion, chemicals, and daily traffic. Its customizable flake blends and color options make it ideal for institutional facilities, retail environments, restaurants, schools, and healthcare spaces.

With Hybri-Gard™ EF, strength and style go hand in hand-offering a seamless, resilient surface that performs as beautifully as it looks.

Selected Physical Properties

Product	Description	Test Method	Results
X	X	X	X
X	X	X	X
X	X	X	X
X	X	X	X

Consult Neogard Product Data Sheets and Guide Specifications for a complete list of physical properties.

Use Area:

Type:

Epoxy Decorative Flake Broadcast System

Features:

Decorative flake design with epoxy topcoat
Seamless, non-porous, and easy-to-clean surface
Outstanding abrasion, impact, and chemical resistance
Customizable flake blends and color options
Compatible with a range of gloss levels for visual flexibility

Benefits:

Long-lasting, low-maintenance flooring solution
Enhances aesthetics without compromising performance
Resistant to heavy traffic and routine cleaning chemicals
Easy to maintain and renew over time
Promotes a clean, professional appearance with improved light reflectance

Talk to a Neogard Expert

Discover how Hybri-Gard™ EF can transform your space. Combining proven epoxy performance with decorative versatility, it’s the seamless flooring solution built to last and designed to stand out.

1-833-443-6735

Hybri-Gard EF System Build

Always consult Neogard Product Data Sheets and Guide Specifications before installation to ensure proper mixing, coverage, and curing procedures are followed.

Neocrete SL

Broadcast Flake

Epoxy Topcoat

CG16-ISOM

Coat	Product	Coverage Rate	Mils WFT/DFT
4 - Optional Texture	70714/70715 or 70817/70818 + 86500 Neogrip Spheres*	400 sf/gal	4/4
3 - Optional Chem/ UV Resistant	70817/70818	200 sf/gal	8/8
2 - Topcoat	70714/70715	160 sf/gal	10/10
1 - Primer	70714/70715	260 sf/gal	6/6

*See Guide Specification for instructions for adding 86500 Neogrip Spheres.

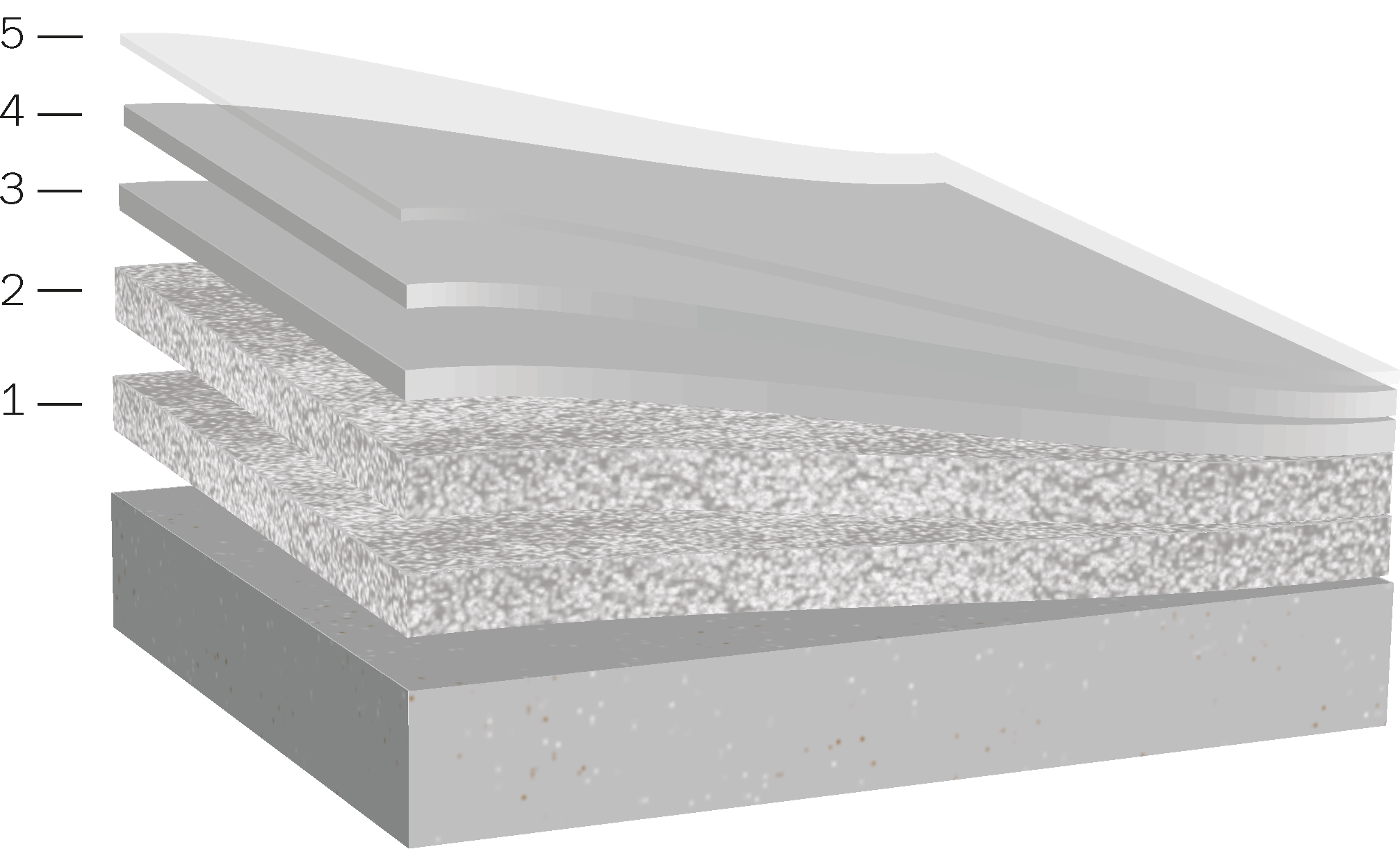

CG125-ISOM

Coat	Product	Coverage Rate	Mils WFT/DFT
4 - Optional Texture	70714/70715 or 70817/70818 + 86500 Neogrip Spheres*	400 sf/gal	4/4
3 - Optional Chem/ UV Resistant	70817/70818	200 sf/gal	8/8
2 - Topcoat	70714/70715	160 sf/gal	10/10
1 - Primer	70714/70715	260 sf/gal	6/6

*See Guide Specification for instructions for adding 86500 Neogrip Spheres.

CG32-ISOM

Coat	Product	Coverage Rate	Mils WFT/DFT
4 - Optional Texture	70714/70715 or 70817/70818 + 86500 Neogrip Spheres*	400 sf/gal	4/4
3 - Optional Chem/ UV Resistant	70817/70818	200 sf/gal	8/8
2 - Topcoat	70714/70715	160 sf/gal	10/10
1 - Primer	70714/70715	260 sf/gal	6/6

*See Guide Specification for instructions for adding 86500 Neogrip Spheres.

Product Literature

Files may be downloaded individually or in a submittal package. Choose a language to select a file. Select one file and click the download button to the right, or select multiple files and click the “Download Selected” button below.

Technical Documents

selected

Safety Data Sheets (SDS)

FAQs

Where is Hybri-Gard™ EF most commonly used?

Ideal for retail spaces, healthcare facilities, schools, and restaurants that need floors with lasting performance and visual appeal.

Can the flake color and design be customized?

Absolutely! The decorative flakes are available in various colors, sizes, and blends to create the desired aesthetic.

How durable is this flooring system?

Hybri-Gard EF offers high wearability, chemical resistance, and impact strength, making it suitable for demanding commercial and institutional use.

Is it easy to clean and maintain?

Yes, the seamless epoxy surface is easy to clean and maintain, improving hygiene and light reflectance in your facility.

Choose Hybri-Gard™ EF for proven performance and design freedom.

Built on epoxy durability and decorative flexibility, this system resists wear, impact, and chemicals to maintain a clean, polished appearance that enhances any space for years to come.
