Epoxy Aggregate Broadcast System

Durable, High-Performance Epoxy Aggregate Systems

Hybri-Gard™ EB is a 100% solids epoxy system reinforced with natural quartz aggregate to deliver exceptional durability, chemical resistance, and long-term performance. Built on a Neocrete SL urethane-cement base and finished with a solid-color epoxy topcoat, this system provides a seamless, high-strength surface designed to handle continuous traffic and demanding service conditions.

Ideal for manufacturing facilities, loading docks, restaurants, schools, and healthcare environments, Hybri-Gard EB offers a clean, easy-to-maintain finish that stands up to heavy use while maintaining a professional appearance.

Product Specifications
Application Methods
Product Literature
Technical Documents
FAQs

System Overview

The Hybri-Gard™ E series combines the strength of epoxy with the stability of a Neocrete SL urethane-cement base to deliver lasting performance across a range of environments. Within this series, Hybri-Gard EB stands out for its solid-color epoxy finish and natural quartz aggregate, creating a dense, impact-resistant surface built to withstand heavy use and chemical exposure.

Engineered for manufacturing facilities, loading docks, restaurants, schools, and healthcare environments, Hybri-Gard EB offers exceptional wear life and low maintenance while maintaining a clean, uniform appearance. With customizable colors and texture options, it provides a durable, high-performance flooring system that supports both aesthetics and functionality across the most demanding spaces.

Selected Physical Properties

Product	Description	Test Method	Results
X	X	X	X
X	X	X	X
X	X	X	X
X	X	X	X

Always consult Neogard Product Data Sheets and Guide Specifications before installation to ensure proper mixing, coverage, and curing procedures are followed.

Use Area:

Manufacturing | Institutional | Commercial | Education | Healthcare

Type:

Epoxy Aggregate Broadcast System

Features:

100 % solids epoxy formulation reinforced with natural quartz aggregate
Seamless, non-porous surface designed for easy cleaning
Excellent abrasion, impact, and chemical resistance
Customizable textures and solid-color finishes for varied environments

Benefits:

Long-term durability and mechanical strength
Clean, uniform appearance with color and texture flexibility
Withstands heavy traffic and equipment use
Promotes hygiene and simplifies maintenance
Easy to maintain and recoat for extended service life

Ask Us About Hybri-Gard™ EB

Need help choosing the right epoxy aggregate system? Our Neogard team can guide you through product selection, surface preparation, and performance options to ensure the best fit for your facility’s requirements.

1-833-443-6735

Hybri-Gard EB System Build

Before application, always refer to Neogard Product Data Sheets and Guide Specifications for detailed mixing, curing, and coverage information.

Neocrete SL

Aggregate Broadcast

Solid color Epoxy Topcoat

CG16-ISOM

Coat	Product	Coverage Rate	Mils WFT/DFT
4 - Optional Texture	70714/70715 or 70817/70818 + 86500 Neogrip Spheres*	400 sf/gal	4/4
3 - Optional Chem/ UV Resistant	70817/70818	200 sf/gal	8/8
2 - Topcoat	70714/70715	160 sf/gal	10/10
1 - Primer	70714/70715	260 sf/gal	6/6

*See Guide Specification for instructions for adding 86500 Neogrip Spheres.

CG16-ISOM

Coat	Product	Coverage Rate	Mils WFT/DFT
4 - Optional Texture	70714/70715 or 70817/70818 + 86500 Neogrip Spheres*	400 sf/gal	4/4
3 - Optional Chem/ UV Resistant	70817/70818	200 sf/gal	8/8
2 - Topcoat	70714/70715	160 sf/gal	10/10
1 - Primer	70714/70715	260 sf/gal	6/6

*See Guide Specification for instructions for adding 86500 Neogrip Spheres.

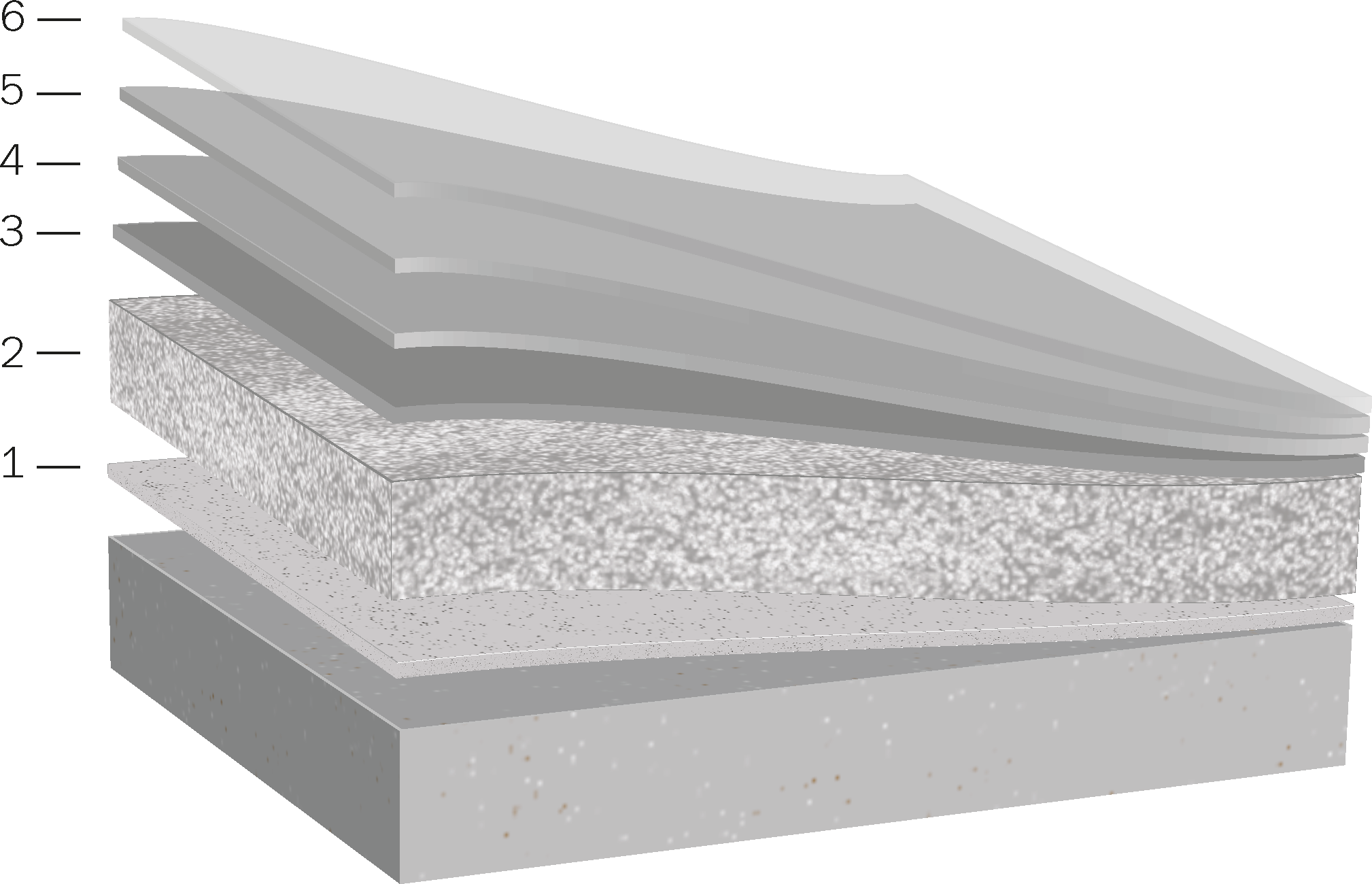

CG250T-ISOM

Coat	Product	Coverage Rate	Mils WFT/DFT
4 - Optional Texture	70714/70715 or 70817/70818 + 86500 Neogrip Spheres*	400 sf/gal	4/4
3 - Optional Chem/ UV Resistant	70817/70818	200 sf/gal	8/8
2 - Topcoat	70714/70715	160 sf/gal	10/10
1 - Primer	70714/70715	260 sf/gal	6/6

*See Guide Specification for instructions for adding 86500 Neogrip Spheres.

Product Literature

Files may be downloaded individually or in a submittal package. Choose a language to select a file. Select one file and click the download button to the right, or select multiple files and click the “Download Selected” button below.

Technical Documents

selected

Safety Data Sheets (SDS)

FAQs

What applications are best suited for Hybri-Gard EB?

This system is ideal for industrial, institutional, and commercial facilities where long-lasting durability, chemical resistance, and easy maintenance are essential.

Can the surface be customized?

Yes! Hybri-Gard™ EB offers flexibility through different quartz aggregate sizes (40-S Broadcast Grade or 25-A Trowel Grade) and a range of pigmented epoxy coatings. This allows you to tailor the floor’s color, texture, and slip resistance to your facility’s needs.

How long does the system take to cure?

Epoxy systems typically cure within 24–48 hours, depending on temperature and humidity conditions.

Can it be used for recoating existing floors?

When existing resinous flooring is sound and properly prepared, Hybri-Gard™ EB can be applied as a recoat to renew surface integrity and aesthetics.

Count on Hybri-Gard™ EB for uncompromising performance.

This 100% solids epoxy system delivers exceptional strength and chemical resistance. Neogard solutions are known for providing seamless, dependable surfaces that stand up to years of heavy use.
